Component Parts Location

Fig 1: Cooling Fan Control System Components Location (1 Of 22)

G08235530

Courtesy of NISSAN NORTH AMERICA, INC.

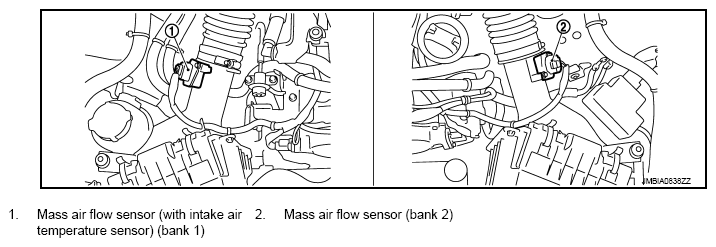

Fig 2: Cooling Fan Control System Components Location (2 Of 22)

G08235531

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Cooling Fan Control System Components Location (3 Of 22)

G08235532

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Cooling Fan Control System Components Location (4 Of 22)

G08235533

Courtesy of NISSAN NORTH AMERICA, INC.

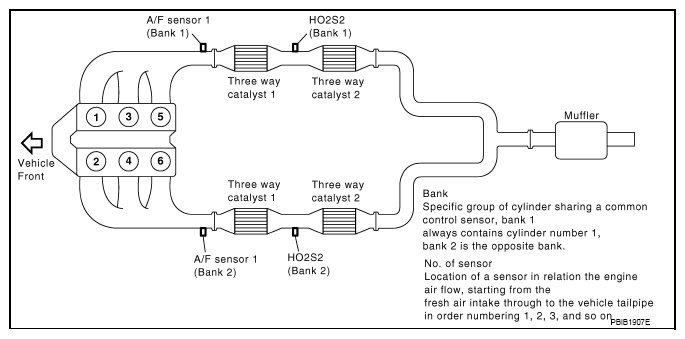

Fig 5: Cooling Fan Control System Components Location (5 Of 22)

G08235534

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Cooling Fan Control System Components Location (6 Of 22)

G08235535

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Cooling Fan Control System Components Location (7 Of 22)

G08235536

Courtesy of NISSAN NORTH AMERICA, INC.

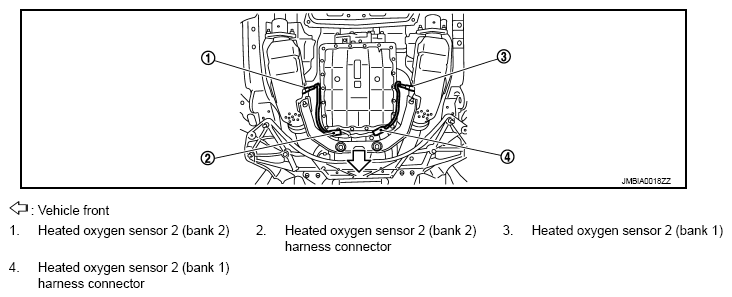

Fig 8: Cooling Fan Control System Components Location (8 Of 22)

G08235537

Courtesy of NISSAN NORTH AMERICA, INC.

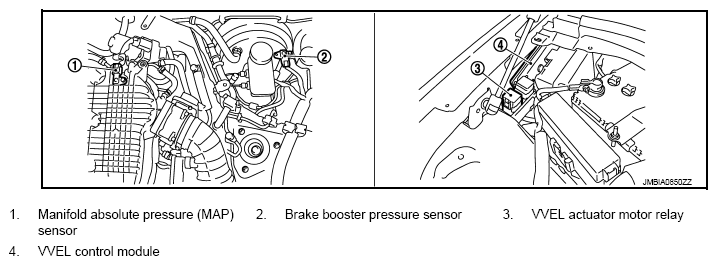

Fig 9: Cooling Fan Control System Components Location (9 Of 22)

G08235538

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Cooling Fan Control System Components Location (10 Of 22)

G08235539

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Cooling Fan Control System Components Location (11 Of 22)

G08235540

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Cooling Fan Control System Components Location (12 Of 22)

G08235541

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Cooling Fan Control System Components Location (13 Of 22)

G08235542

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Cooling Fan Control System Components Location (14 Of 22)

G08235543

Courtesy of NISSAN NORTH AMERICA, INC.

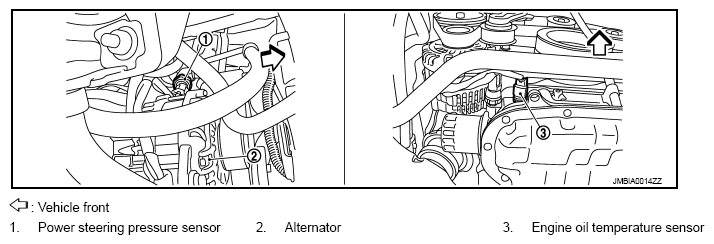

Fig 15: Cooling Fan Control System Components Location (15 Of 22)

G08235544

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Cooling Fan Control System Components Location (16 Of 22)

G08235545

Courtesy of NISSAN NORTH AMERICA, INC.

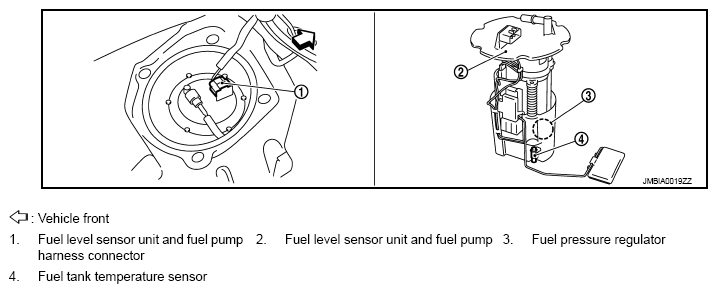

Fig 17: Cooling Fan Control System Components Location (17 Of 22)

G08235546

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Cooling Fan Control System Components Location (18 Of 22)

G08235547

Courtesy of NISSAN NORTH AMERICA, INC.

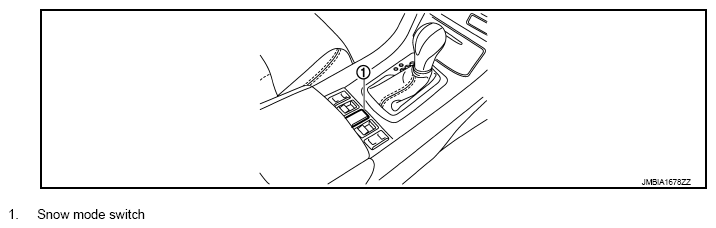

Fig 19: Cooling Fan Control System Components Location (19 Of 22)

G08235548

Courtesy of NISSAN NORTH AMERICA, INC.

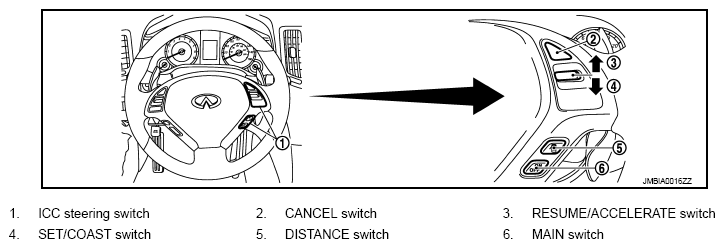

Fig 20: Cooling Fan Control System Components Location (20 Of 22)

G08235549

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Cooling Fan Control System Components Location (21 Of 22)

G08235550

Courtesy of NISSAN NORTH AMERICA, INC.

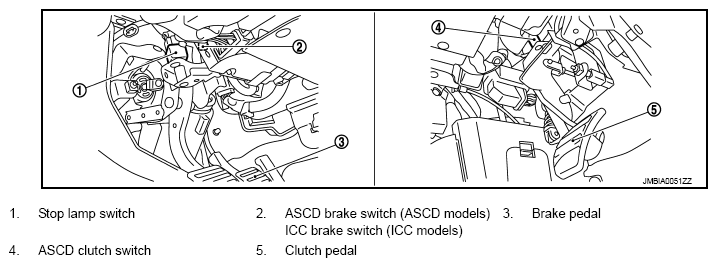

Fig 22: Cooling Fan Control System Components Location (22 Of 22)

G08235551

Courtesy of NISSAN NORTH AMERICA, INC.
