Component Parts Location

Fig 1: Electric Ignition System Components Location (1 Of 22)

G08235461

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Electric Ignition System Components Location (2 Of 22)

G08235462

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Electric Ignition System Components Location (3 Of 22)

G08235463

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Electric Ignition System Components Location (4 Of 22)

G08235464

Courtesy of NISSAN NORTH AMERICA, INC.

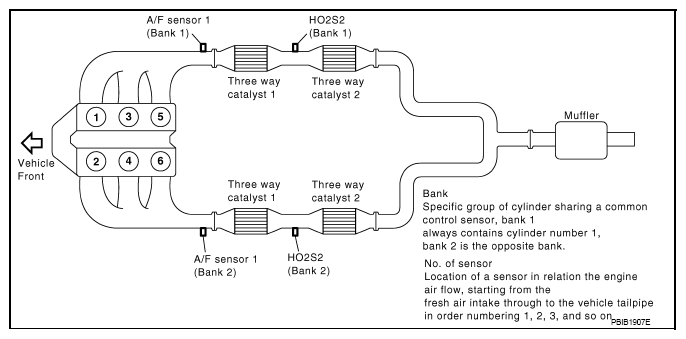

Fig 5: Electric Ignition System Components Location (5 Of 22)

G08235465

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Electric Ignition System Components Location (6 Of 22)

G08235466

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Electric Ignition System Components Location (7 Of 22)

G08235467

Courtesy of NISSAN NORTH AMERICA, INC.

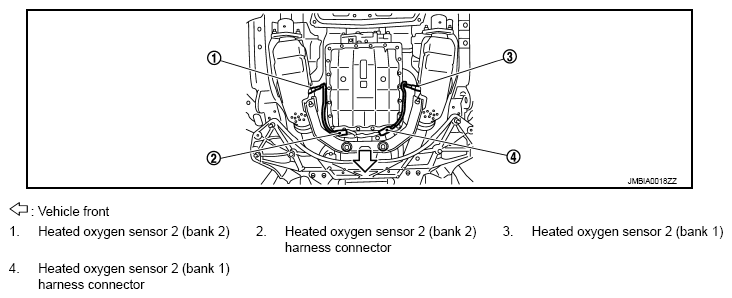

Fig 8: Electric Ignition System Components Location (8 Of 22)

G08235468

Courtesy of NISSAN NORTH AMERICA, INC.

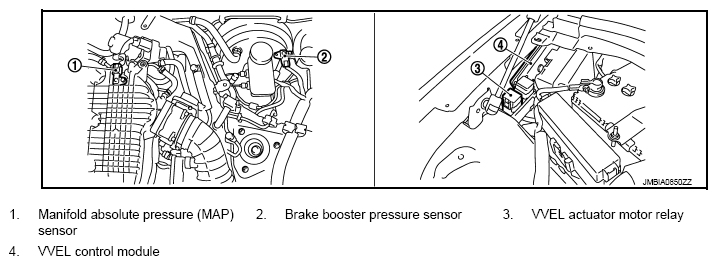

Fig 9: Electric Ignition System Components Location (9 Of 22)

G08235469

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Electric Ignition System Components Location (10 Of 22)

G08235470

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Electric Ignition System Components Location (11 Of 22)

G08235471

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Electric Ignition System Components Location (12 Of 22)

G08235472

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Electric Ignition System Components Location (13 Of 22)

G08235473

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Electric Ignition System Components Location (14 Of 22)

G08235474

Courtesy of NISSAN NORTH AMERICA, INC.

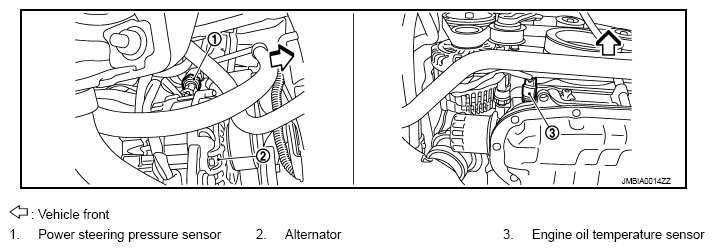

Fig 15: Electric Ignition System Components Location (15 Of 22)

G08235475

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Electric Ignition System Components Location (16 Of 22)

G08235476

Courtesy of NISSAN NORTH AMERICA, INC.

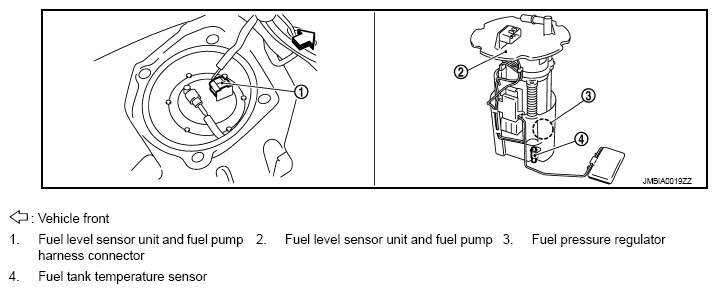

Fig 17: Electric Ignition System Components Location (17 Of 22)

G08235477

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Electric Ignition System Components Location (18 Of 22)

G08235478

Courtesy of NISSAN NORTH AMERICA, INC.

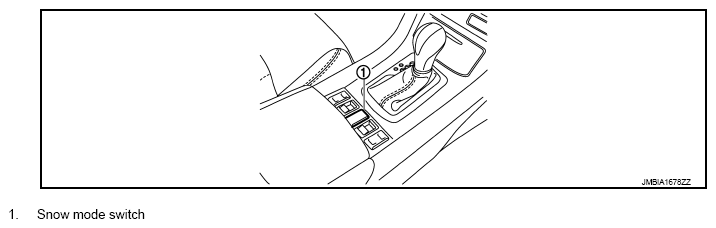

Fig 19: Electric Ignition System Components Location (19 Of 22)

G08235479

Courtesy of NISSAN NORTH AMERICA, INC.

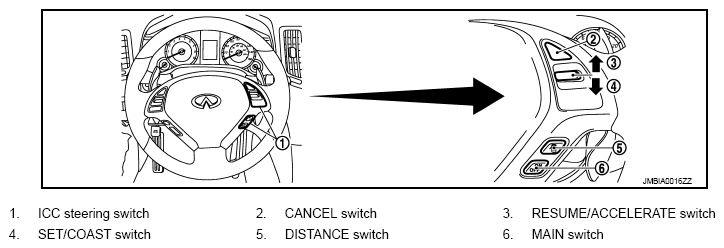

Fig 20: Electric Ignition System Components Location (20 Of 22)

G08235480

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Electric Ignition System Components Location (21 Of 22)

G08235481

Courtesy of NISSAN NORTH AMERICA, INC.

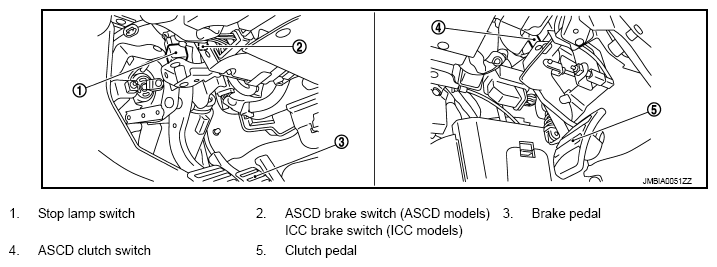

Fig 22: Electric Ignition System Components Location (22 Of 22)

G08235482

Courtesy of NISSAN NORTH AMERICA, INC.
