Exploded View

WARNING: This page is about a different variant/trim than selected.

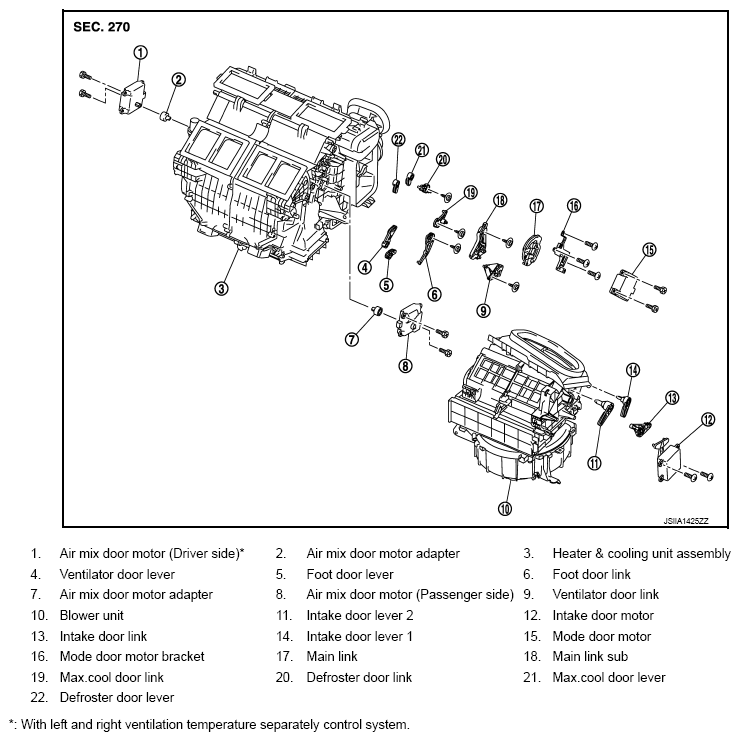

Fig 1: Exploded View Of Door Motor
G08459012Courtesy of NISSAN NORTH AMERICA, INC.
