Component Parts Location

Fig 1: Engine Control System Components Location (1 Of 22)

G08235413

Courtesy of NISSAN NORTH AMERICA, INC.

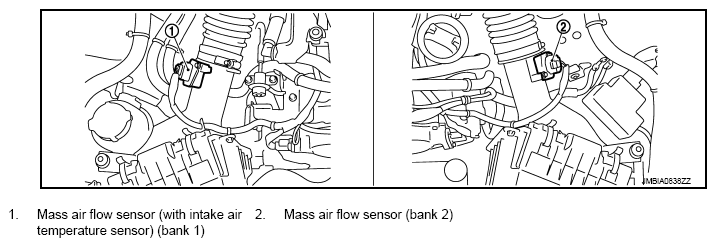

Fig 2: Engine Control System Components Location (2 Of 22)

G08235414

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Engine Control System Components Location (3 Of 22)

G08235415

Courtesy of NISSAN NORTH AMERICA, INC.

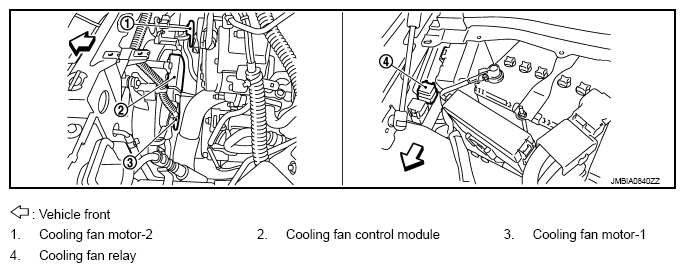

Fig 4: Engine Control System Components Location (4 Of 22)

G08235416

Courtesy of NISSAN NORTH AMERICA, INC.

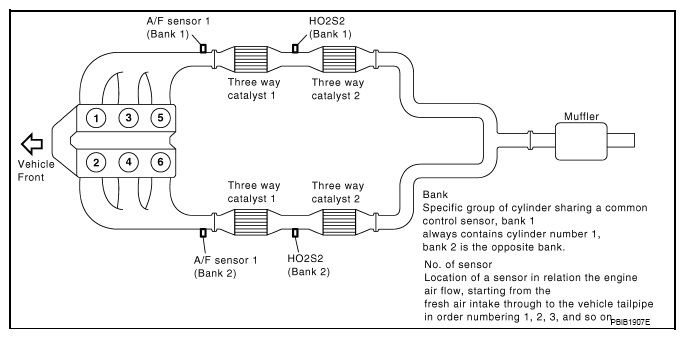

Fig 5: Engine Control System Components Location (5 Of 22)

G08235417

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Engine Control System Components Location (6 Of 22)

G08235418

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Engine Control System Components Location (7 Of 22)

G08235419

Courtesy of NISSAN NORTH AMERICA, INC.

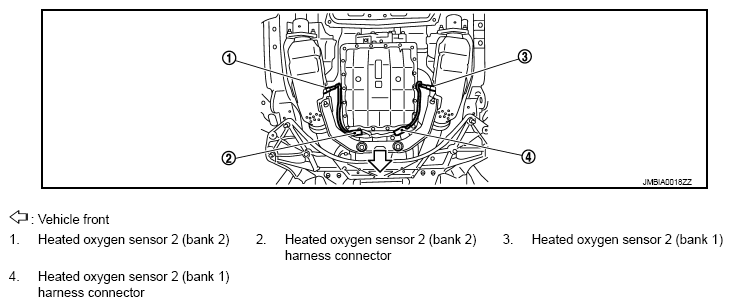

Fig 8: Engine Control System Components Location (8 Of 22)

G08235420

Courtesy of NISSAN NORTH AMERICA, INC.

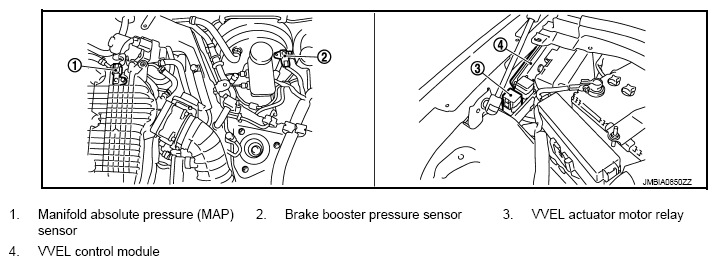

Fig 9: Engine Control System Components Location (9 Of 22)

G08235421

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Components Location (10 Of 22)

G08235422

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System Components Location (11 Of 22)

G08235423

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System Components Location (12 Of 22)

G08235424

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Components Location (13 Of 22)

G08235425

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Components Location (14 Of 22)

G08235426

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System Components Location (15 Of 22)

G08235427

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Components Location (16 Of 22)

G08235428

Courtesy of NISSAN NORTH AMERICA, INC.

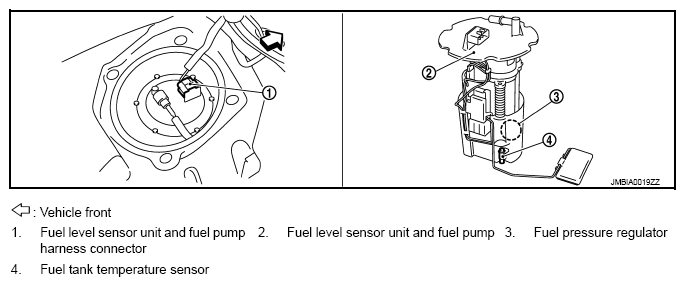

Fig 17: Engine Control System Components Location (17 Of 22)

G08235429

Courtesy of NISSAN NORTH AMERICA, INC.

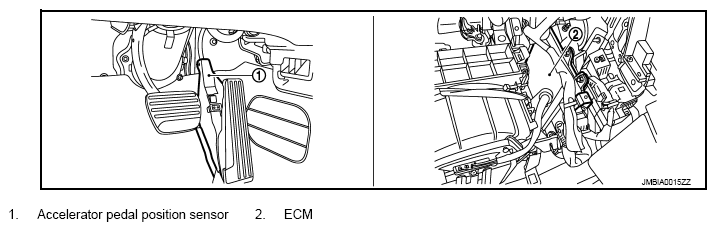

Fig 18: Engine Control System Components Location (18 Of 22)

G08235430

Courtesy of NISSAN NORTH AMERICA, INC.

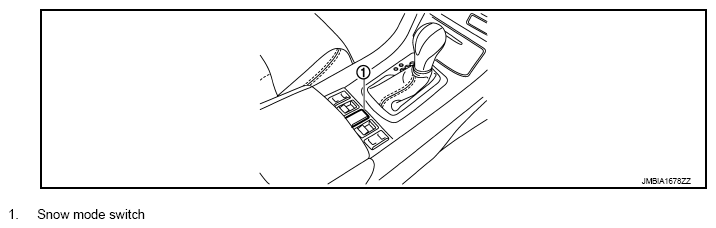

Fig 19: Engine Control System Components Location (19 Of 22)

G08235431

Courtesy of NISSAN NORTH AMERICA, INC.

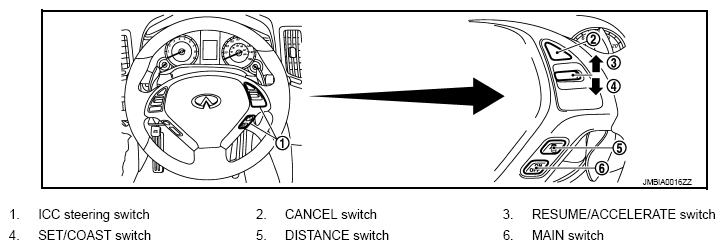

Fig 20: Engine Control System Components Location (20 Of 22)

G08235432

Courtesy of NISSAN NORTH AMERICA, INC.

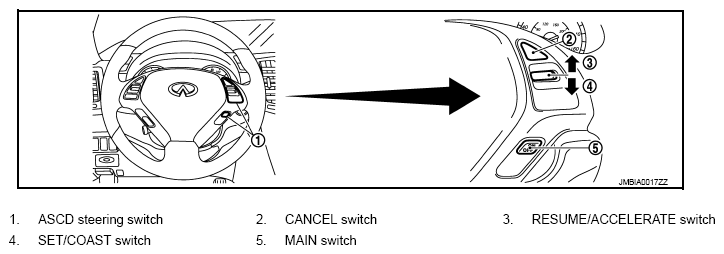

Fig 21: Engine Control System Components Location (21 Of 22)

G08235433

Courtesy of NISSAN NORTH AMERICA, INC.

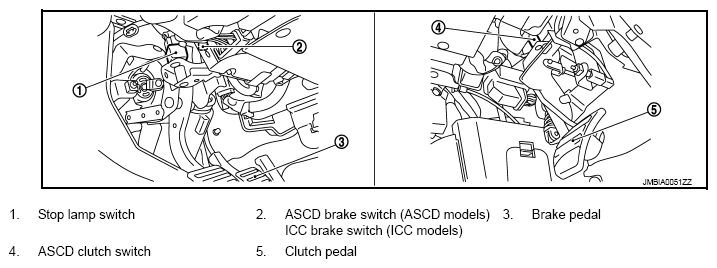

Fig 22: Engine Control System Components Location (22 Of 22)

G08235434

Courtesy of NISSAN NORTH AMERICA, INC.
