Component Inspection (SSOFF Relay)

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SSOFF RELAY

Turn power switch OFF.
Remove SSOFF relay.
Check the continuity between SSOFF relay terminals under the following conditions.

CONTINUITY REFERENCE CHART

Terminals	Conditions	Continuity
3 and 5	12 V direct current supply between terminals 1 and 2	Existed
3 and 5	No current supply	Not existed

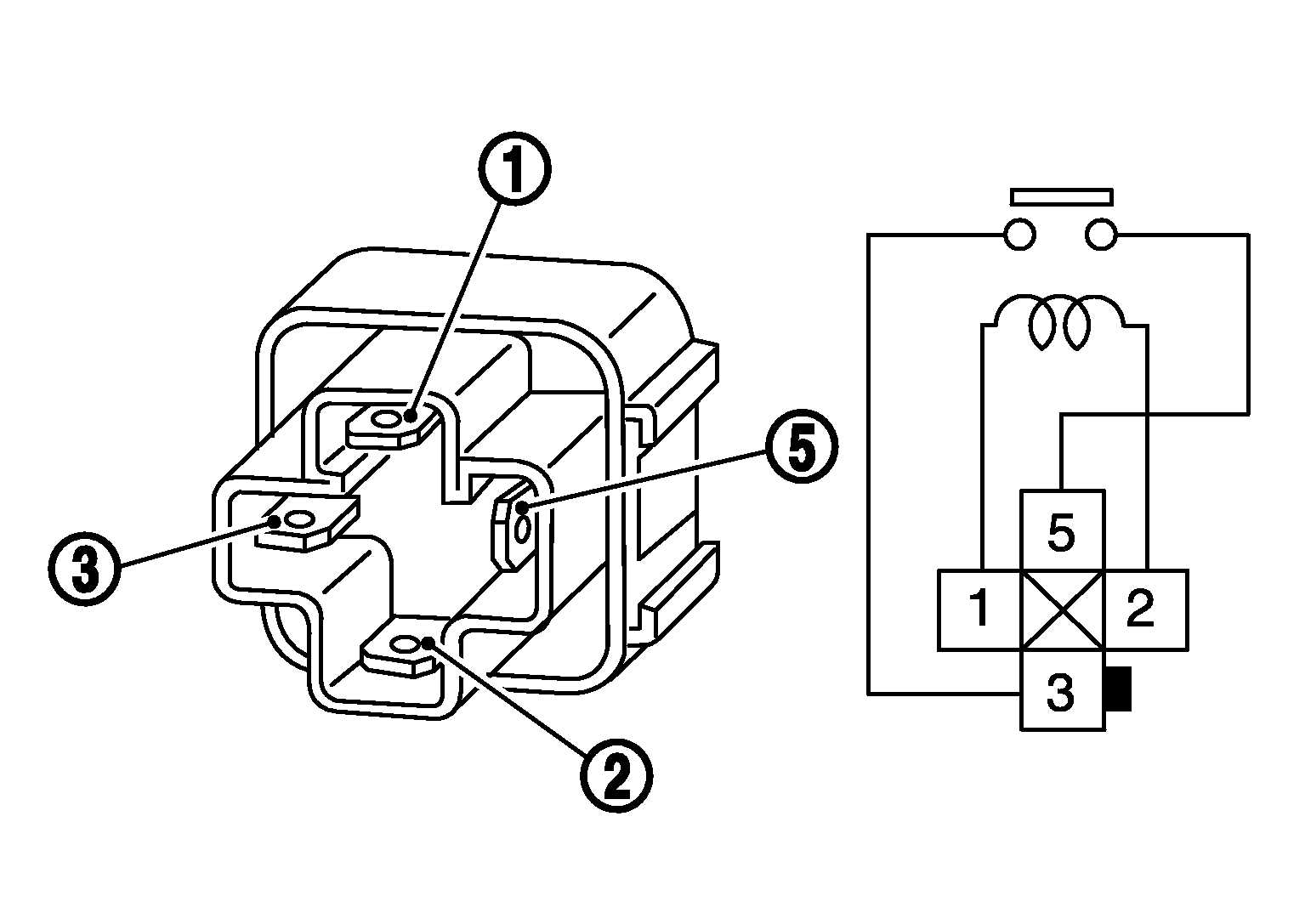

Fig 1: Checking Continuity Between SSOFF Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace SSOFF relay.
