System Diagram

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

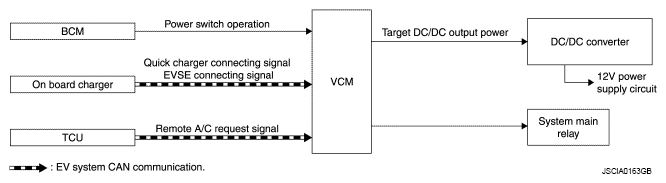

Fig 1: Automatic 12V Battery Charge Control System Diagram
G07084057Courtesy of NISSAN MOTOR CO., U.S.A.
