Component Inspection

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

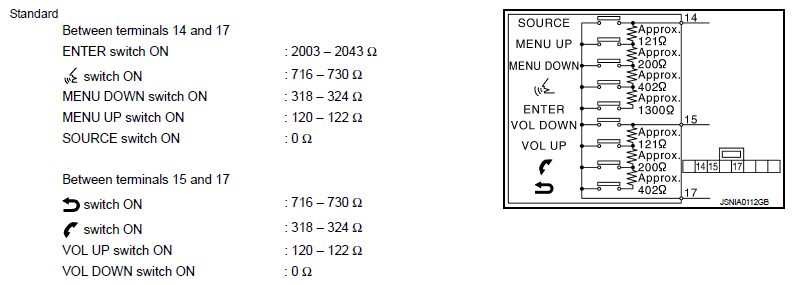

Fig 1: Measuring Resistance Between Steering Switch Connector Terminals 14 To 17 And 15 To 17
G07103739Courtesy of NISSAN MOTOR CO., U.S.A.
