Starting Procedure

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Turn the audio system OFF.
  3. While pressing the "SETTING" button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
    • Shifting from current screen to previous screen is performed by pressing "BACK" button.

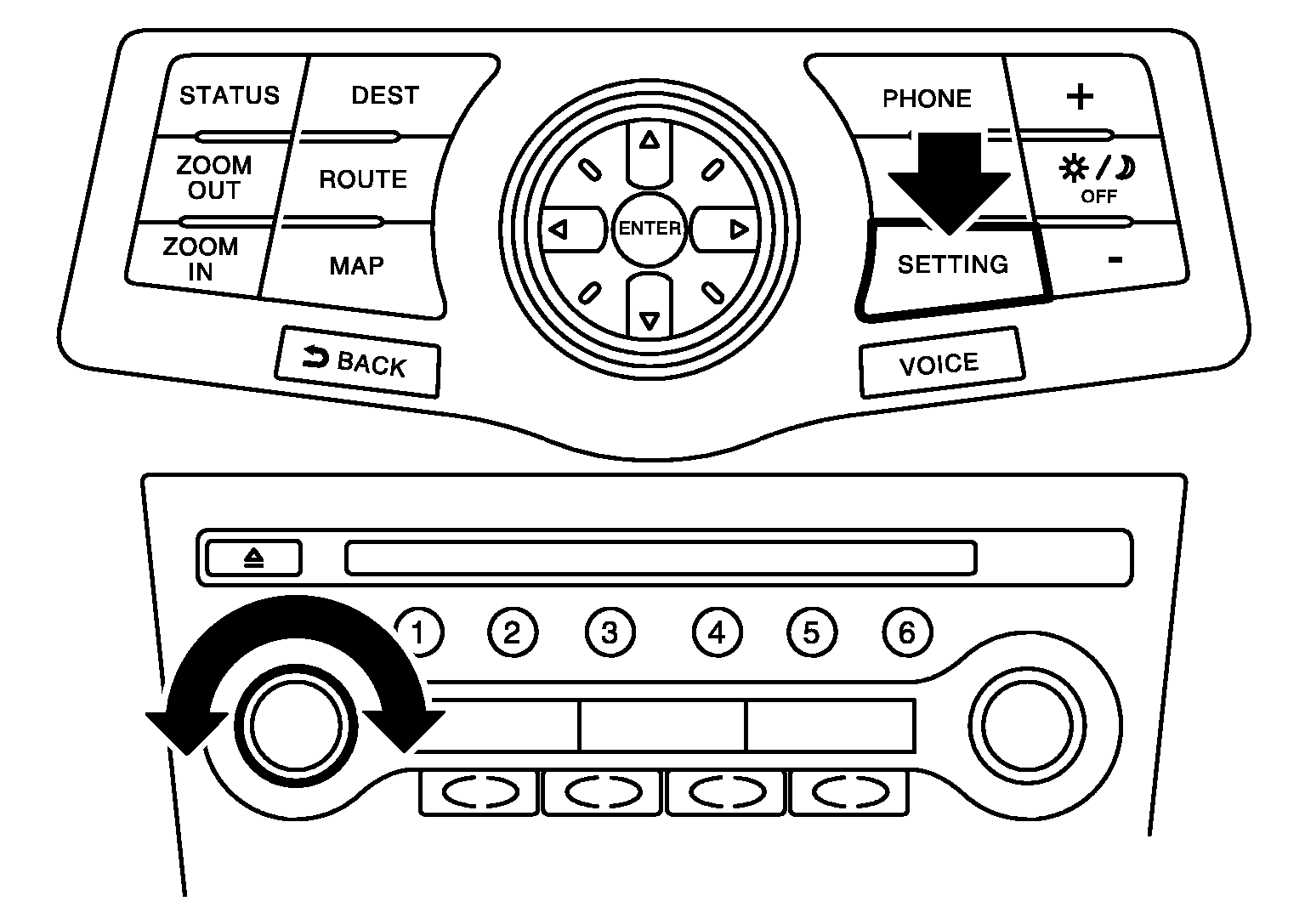

    Fig 1: Identifying SETTING Button
    G06573577Courtesy of NISSAN MOTOR CO., U.S.A.
  4. The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
Fig 2: Screen Display - System Diagnostic Menu
G06562125Courtesy of NISSAN MOTOR CO., U.S.A.
