MULTI AV SYSTEM : System Diagram

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

COUPE MODELS

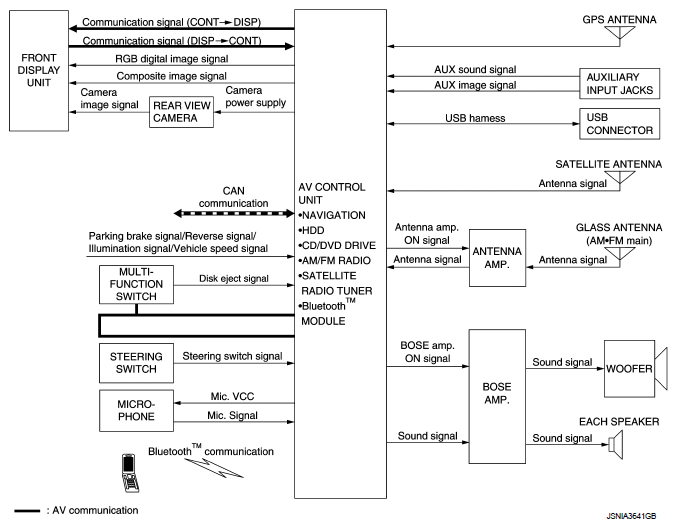

Fig 1: Multi AV System - System Diagram (Coupe Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

ROADSTER MODELS

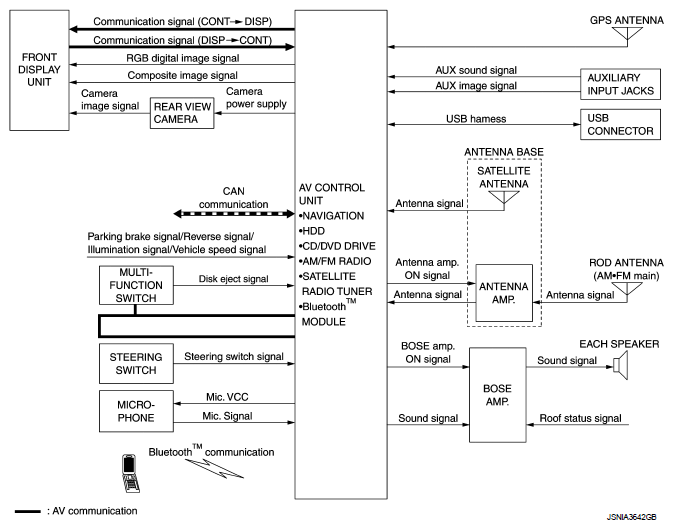

Fig 2: Multi AV System - System Diagram (Roadster Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with antenna amp. and satellite antenna are adopted.

Fig 3: Rod Antenna Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
