WITHOUT PLASMACLUSTER SYSTEM: Temperature Setting Trimmer: Description

WARNING: This page is about a different variant/trim than selected.

The trimmer compensates for differences in range of ±3°C (±6°F) between temperature setting (displayed digitally) and temperature felt by customer.

Operating procedures for this trimmer are as per the following:

Begin self-diagnosis STEP-5 mode. Refer to "WITHOUT PLASMACLUSTER SYSTEM: Diagnosis Description ".
Press fan (UP: +) switch*1 (turn fan control dial clockwise*2) to set system in auxiliary mode.
NOTE: *1: With left and right ventilation temperature separately system.
*2: Without left and right ventilation temperature separately system.
Display shows "61" in auxiliary mechanism. It takes approximately 3 seconds to enable setting operation.
Turn temperature control dial (driver side) as desired. Temperature will change at a rate of 0.5°C (1.0°F) each time a dial is turned.

CAUTION: A decimal point is not indicated on the display.

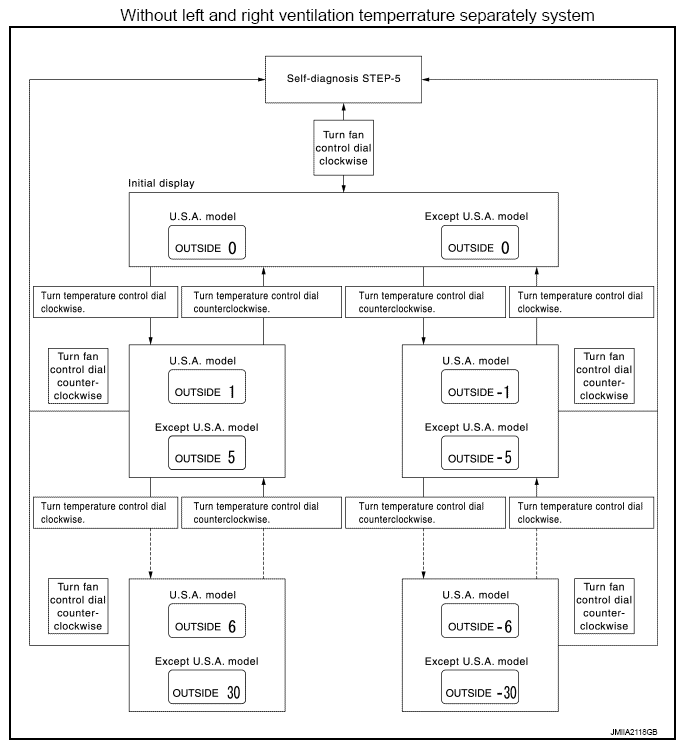

Fig 1: Without Left And Right Ventilation Temperature Separately System

Courtesy of NISSAN NORTH AMERICA, INC.

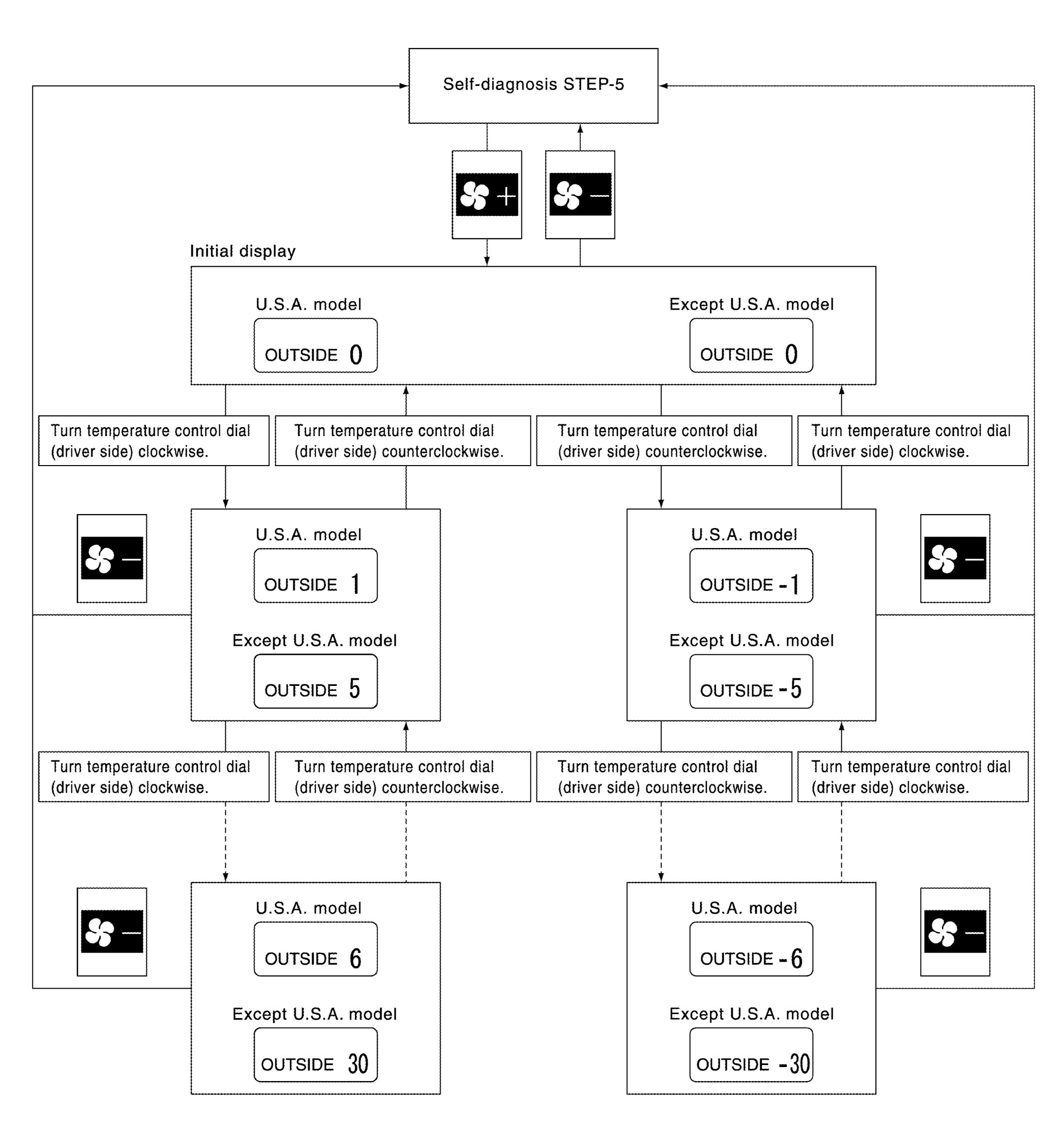

Fig 2: With Left And Right Ventilation Temperature Separately System

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Temperature set becomes that of initial condition, i.e. 0°C (0°F).
