In-vehicle Sensor
WARNING: This page is about a different variant/trim than selected.

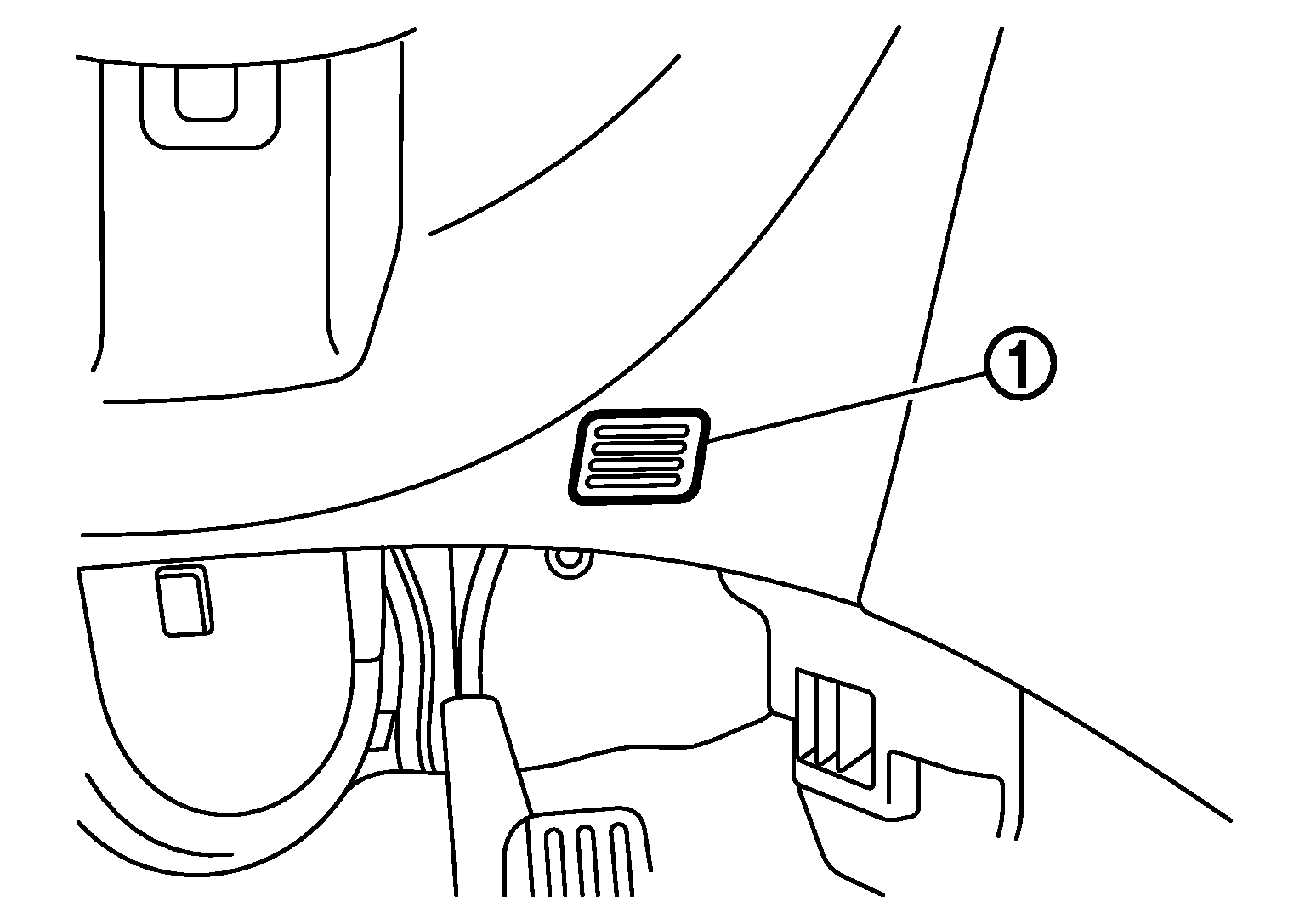

The in-vehicle sensor (1) is located on instrument driver lower panel. It converts variations in compartment air temperature drawn from the aspirator into a resistance value. It is then input into the unified meter and A/C amp.
