Section 11 (HVAC Control System (Sedan))
>>
System Description
>>
Air Mix Door Control System
>>
System Diagram
>>
Without Left And Right Ventilation Temperature Separately Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Without Left And Right Ventilation Temperature Separately Control System
WARNING:
This page is about a different variant/trim than selected.

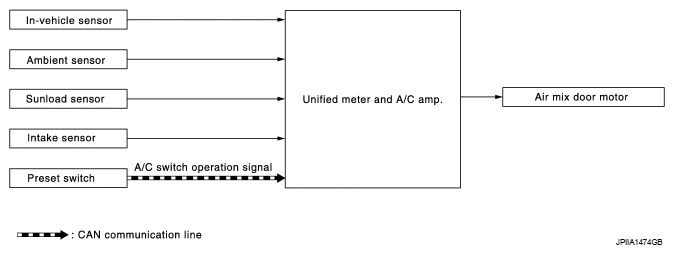

Fig 1: Air Mix Door Control System Diagram (Without Left And Right Ventilation Temperature Separately Control System)
Courtesy of NISSAN NORTH AMERICA, INC.
