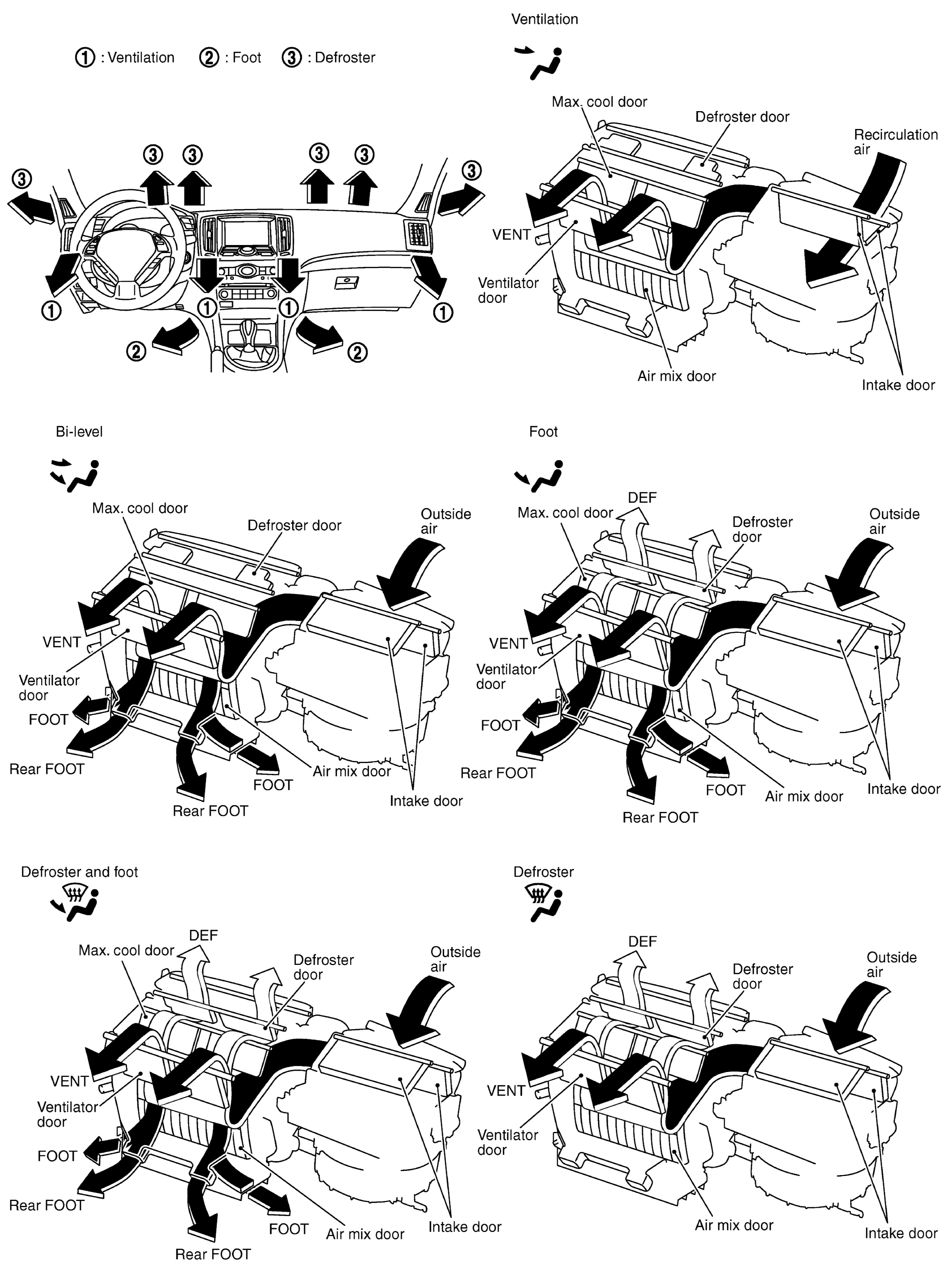

Discharge Air Flow

Without Rear Ventilation

Fig 1: Discharge Air Flow Diagram (Without Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.

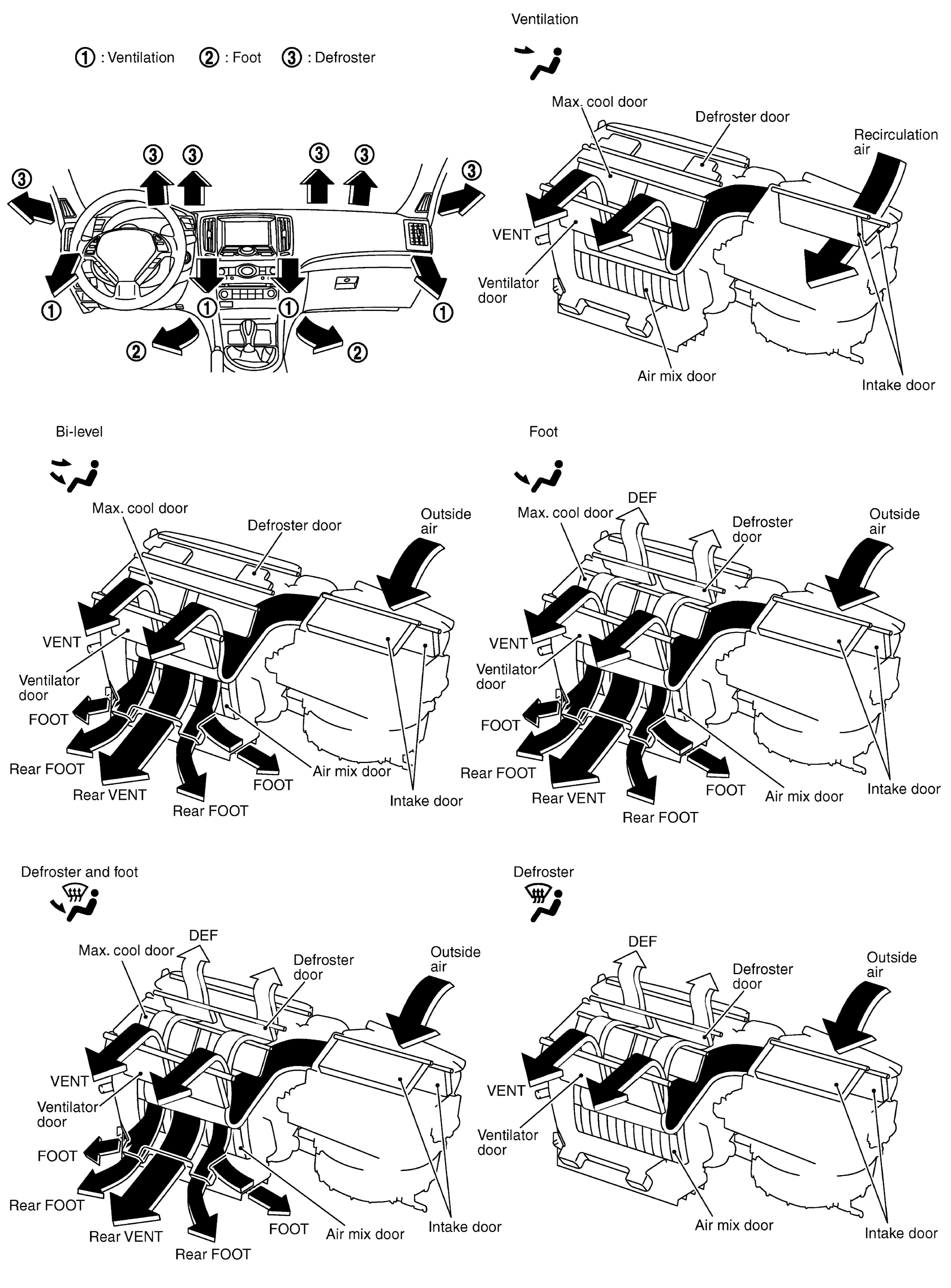

With Rear Ventilation

Fig 2: Discharge Air Flow Diagram (With Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.

SWITCHES AND THEIR CONTROL FUNCTION

Without Rear Ventilation

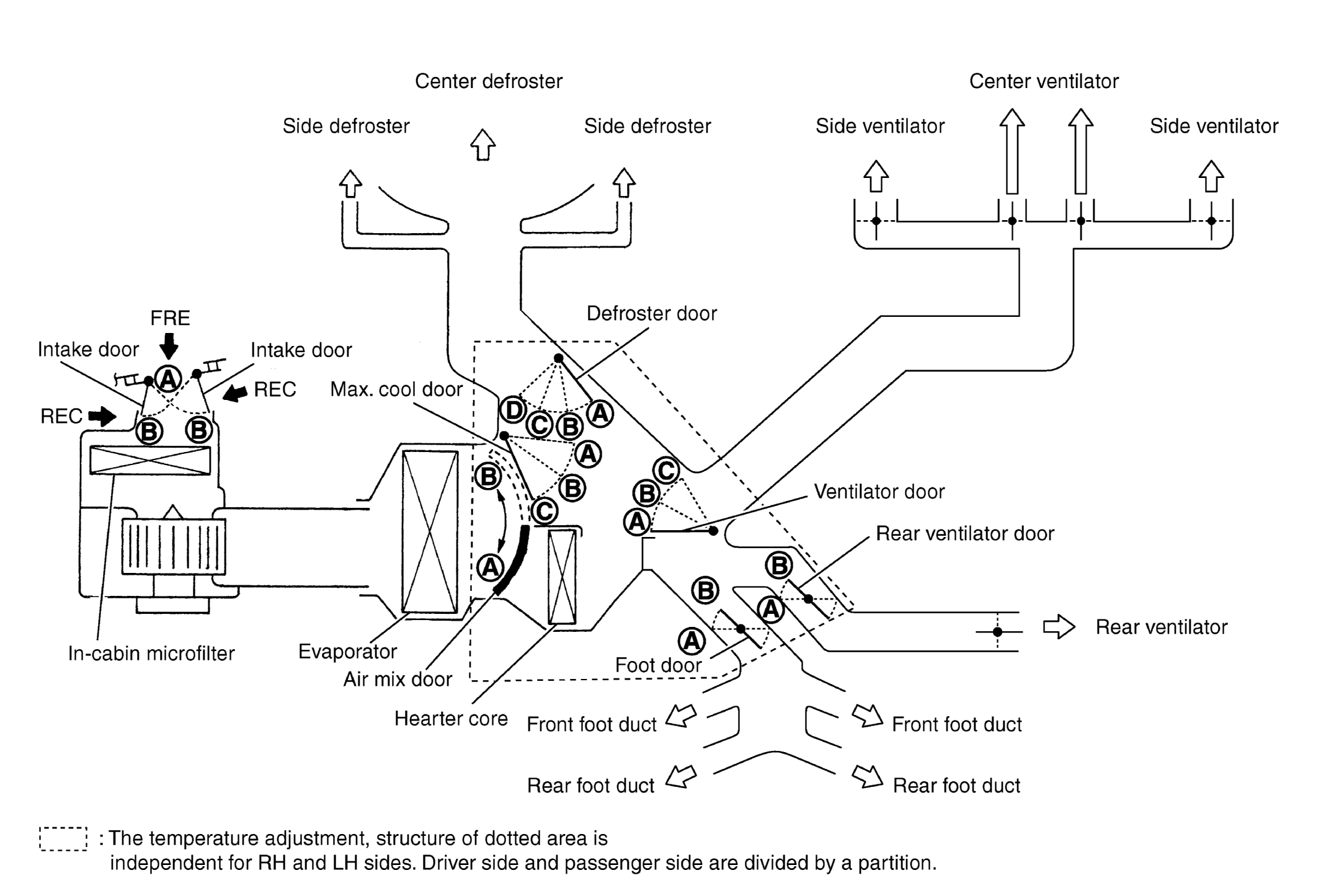

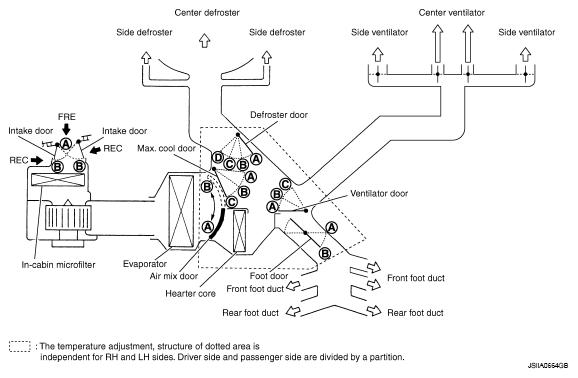

Fig 3: Switches And Control Function Diagram (Ventilation System Diagram)

Courtesy of NISSAN NORTH AMERICA, INC.

Switch position				Door position
				Ventilator door	Max. cool door	Defroster door	Foot door	Intake door	Air mix door (Driver side)	Air mix door (Passenger side)
AUTO switch				AUTO
MODE switch	VENT			A	A	D	B	-	-	-
	B/L			B	B	D	B
	FOOT			C	C	C	B
	D/F					B	B	B
DEF switch						A	A	B
Intake switch	FRE			-	-	-	-	B(1)
	REC							A(1)
DUAL switch	DUAL							-		ON
	OFF									OFF
Temperature control dial (Driver side)	DUAL switch: OFF	18.0°C (60°F)							A
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)							AUTO
		32.0°C (90°F)							B
Temperature control dial (Driver side)	DUAL switch: ON	18.0°C (60°F)							A	-
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)							AUTO
		32.0°C (90°F)							B
Temperature control dial (Passenger side)		18.0°C (60°F)							-	A
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)								AUTO
		32.0°C (90°F)								B
OFF switch				C	C	C	B	B	-	-
(1) Inlet status is displayed by indicator when activating automatic control

With Rear Ventilation (Without Plasmacluster System)

Fig 4: Switches And Control Function Diagram (Without Plasmacluster System)

Courtesy of NISSAN NORTH AMERICA, INC.

Switch position				Door position
				Ventilator door	Max. cool door	Defroster door	Foot door	Rear ventilator door	Intake door	Air mix door (Driver side)	Air mix door (Passenger side)
AUTO switch				AUTO
MODE switch	VENT			A	A	D	B	B	-	-	-
	B/L			B	B	D	B	B
	FOOT			C	C	C	B	B
	D/F					B	B	B	B
DEF switch						A	A	A	B
Intake switch	FRE			-	-	-	-	-	B(1)
	REC								A(1)
DUAL switch	DUAL								ON		-
	OFF								OFF
Temperature control dial (Driver side)	DUAL switch: OFF	18.0°C (60°F)							A
		18.5°C ↔ 31.5°C (61 °F ↔ 89°F)							AUTO
		32.0°C (90°F)							B
Temperature control dial (Driver side)	DUAL switch: ON	18.0°C (60°F)							A	-
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)							AUTO
		32.0°C (90°F)							B
Temperature control dial (Passenger side)		18.0°C (60°F)							-	A
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)								AUTO
		32.0°C (90°F)								B
OFF switch				C	C	C	B	B	B	-	-
(1) Inlet status is displayed by indicator when activating automatic control

With Rear Ventilation (With Plasmacluster System)

Fig 5: Switches And Control Function Diagram (With Plasmacluster System)

Courtesy of NISSAN NORTH AMERICA, INC.

Switch position				Door position
				Ventilator door	Max. cool door	Defroster door	Foot door	Rear ventilator door	Intake door	Air mix door (Driver side)	Air mix door (Passenger side)
AUTO switch				AUTO
MODE switch	VENT			A	A	D	B	B	-	-	-
	B/L			B	B	D	B	B
	FOOT			C	C	C	B	B
	D/F					B	B	B	B
DEF switch						A	A	A	B
Intake switch	AUTO			-	-	-	-	-	AUTO(2)
	REC								A(1)
	FRE								B(1)
DUAL switch	DUAL								-		ON
	OFF										OFF
Temperature control dial (Driver side)	DUAL switch: OFF	18.0°C (60°F)								A
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)								AUTO
		32.0°C (90°F)								B
Temperature control dial (Driver side)	DUAL switch: ON	18.0°C (60°F)								A	-
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)								AUTO
		32.0°C (90°F)								B
Temperature control dial (Passenger side)		18.0°C (60°F)								-	A
		18.5°C ↔ 31.5°C (61°F ↔ 89°F)									AUTO
		32.0°C (90°F)									B
OFF switch				C	C	C	B	B	B	-	-
(1) Inlet status is displayed by indicator when activating automatic control (2) Intake door control applies a exhaust gas/outside odor detecting sensor
