Switches And Their Control Function

WARNING: This page is about a different variant/trim than selected.

Without Rear Ventilation

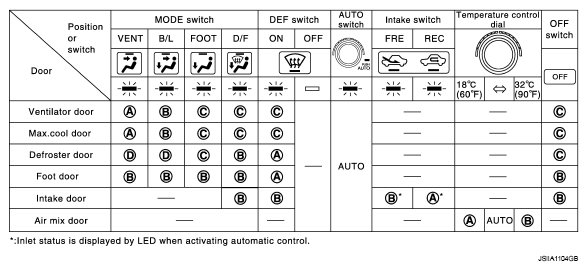

Fig 1: Switches And Control Function Diagram (Without Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.

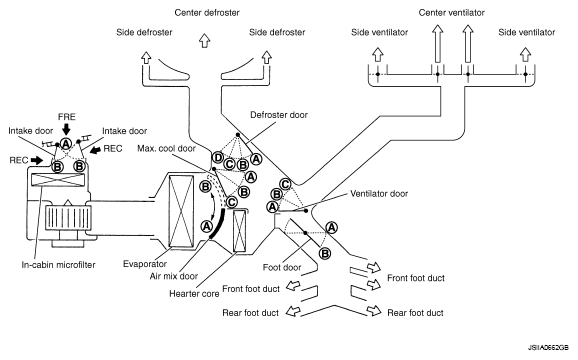

Fig 2: Switches And Control Function Chart (Without Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.

With Rear Ventilation

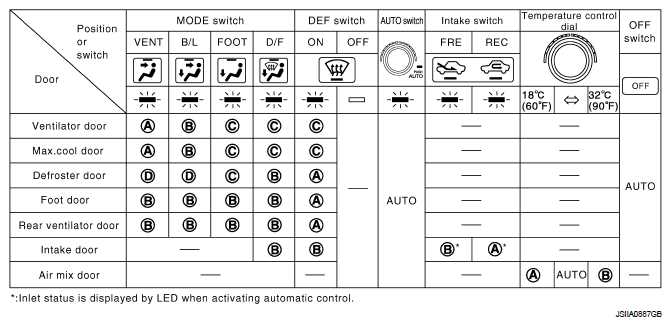

Fig 3: Switches And Control Function Diagram (With Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.

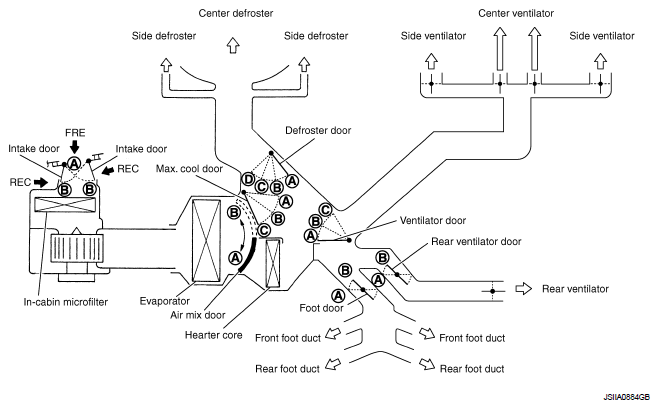

Fig 4: Switches And Control Function Chart (With Rear Ventilation)

Courtesy of NISSAN NORTH AMERICA, INC.
