Functional Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

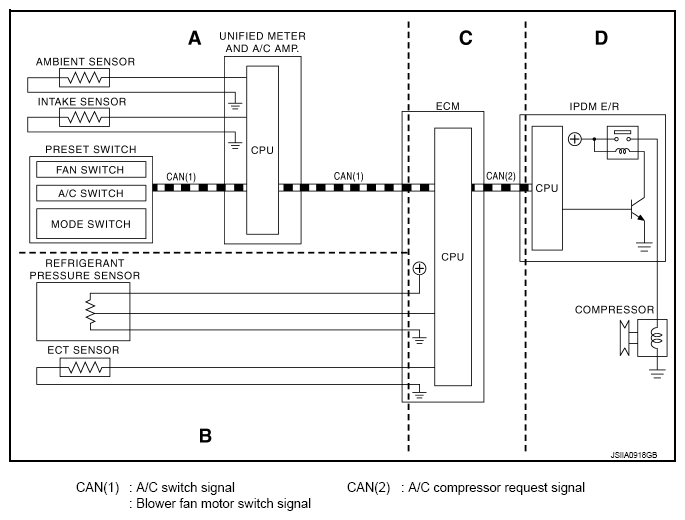

Fig 1: Compressor Control Function - Circuit Diagram
G08458806Courtesy of NISSAN NORTH AMERICA, INC.
