CAN COMMUNICATION SYSTEM: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CAN COMMUNICATION SYSTEM: System Diagram

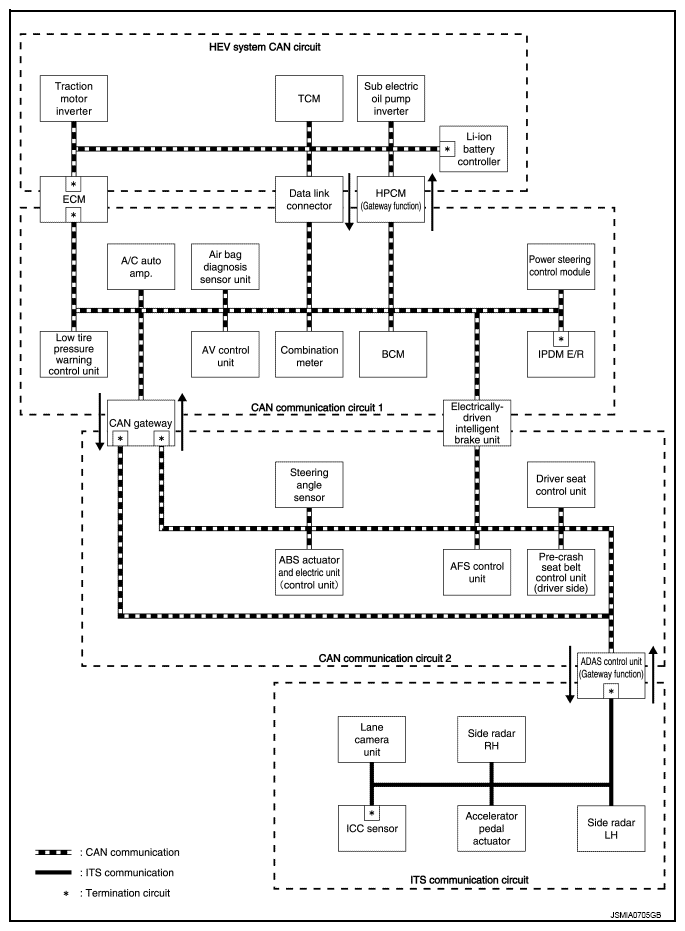

Fig 1: CAN Communication System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
