Data Monitor

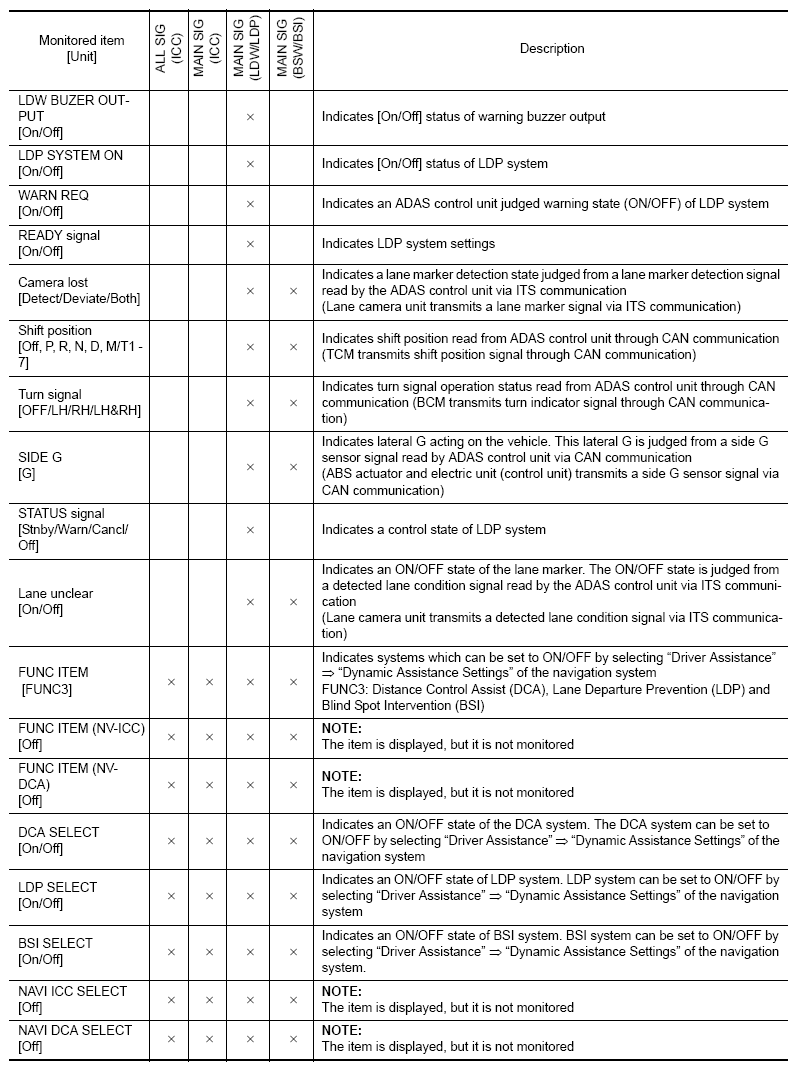

Fig 1: Self Diagnostic Data Monitor Chart (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

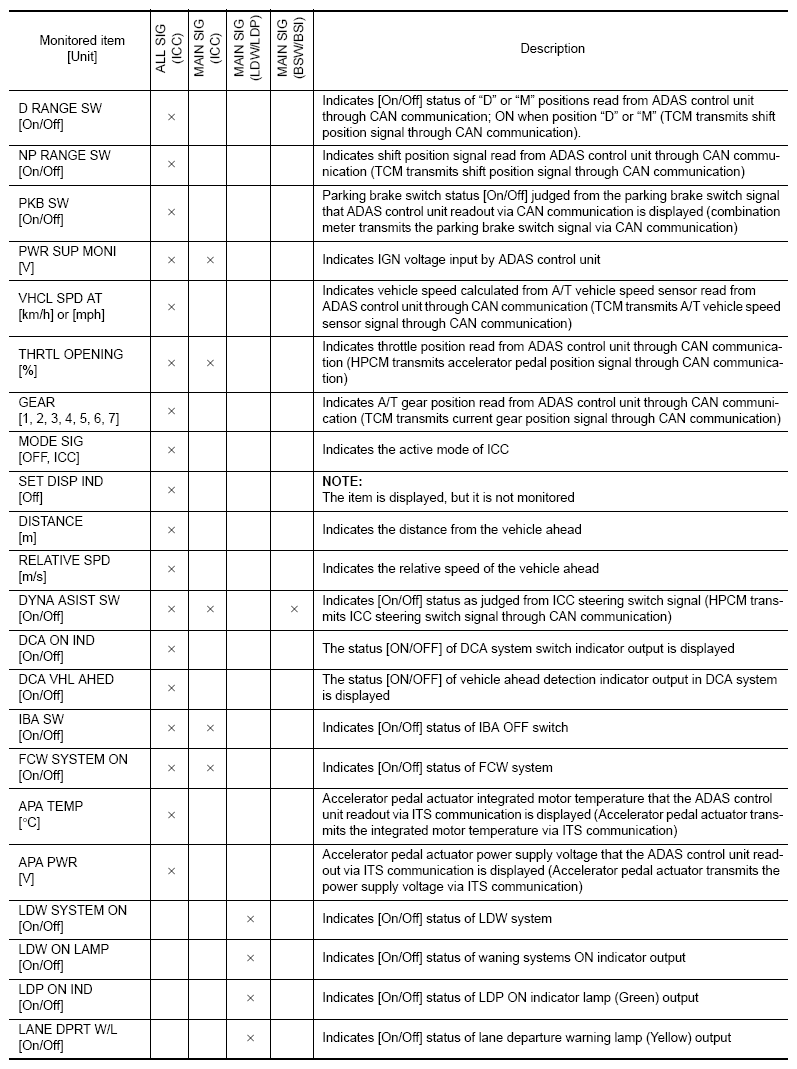

Fig 2: Self Diagnostic Data Monitor Chart (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

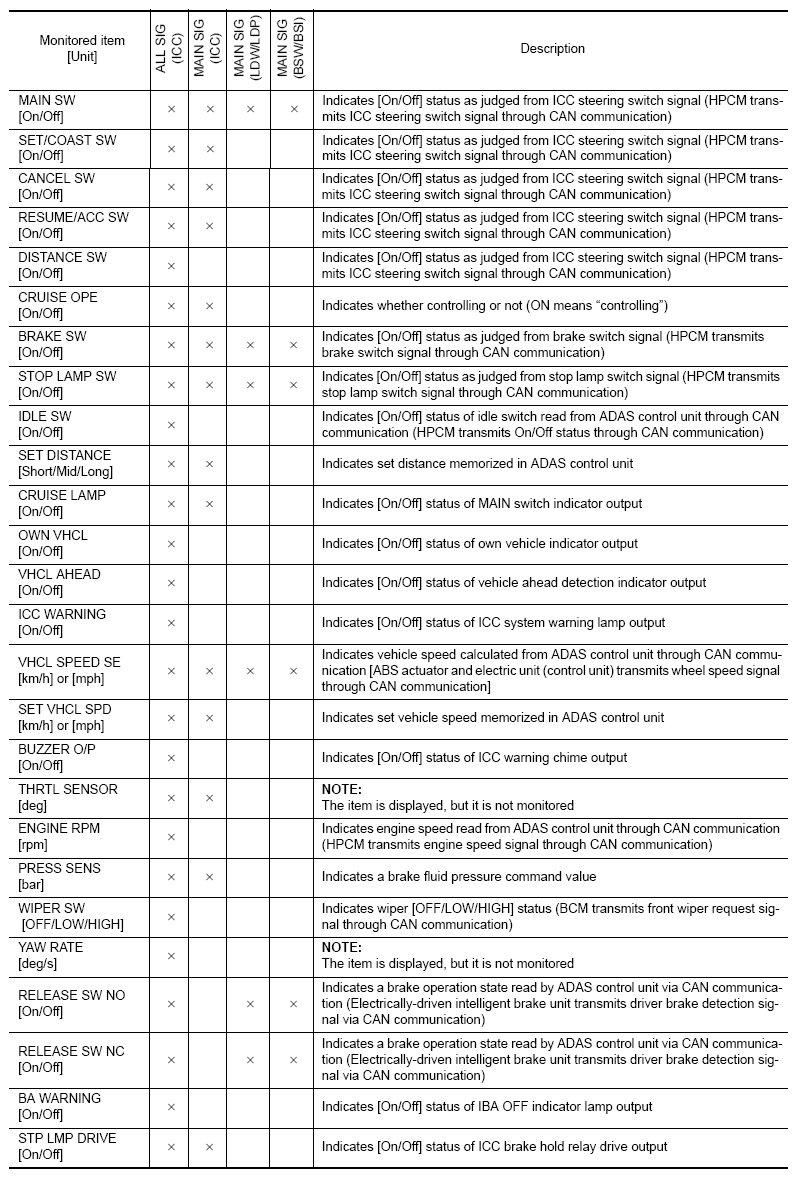

Fig 3: Self Diagnostic Data Monitor Chart (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

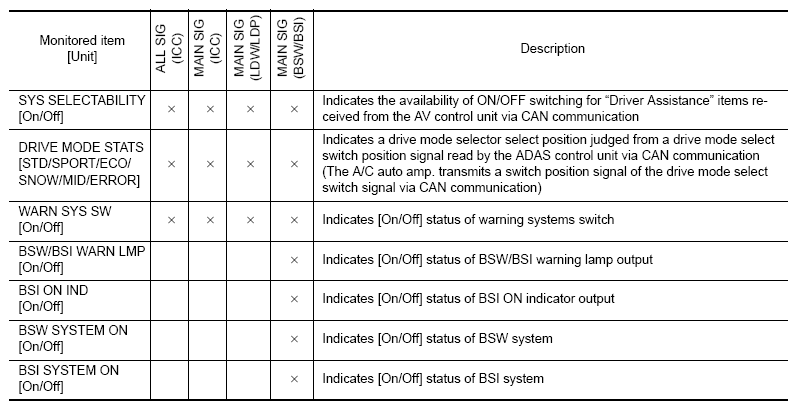

Fig 4: Self Diagnostic Data Monitor Chart (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
