LI-ION BATTERY CONTROLLER: Disassembly and Assembly: Disassembly

Remove the DC/DC converter (1). Refer to "DC/DC CONVERTER: DISASSEMBLY AND ASSEMBLY ".
Remove the controller cover (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

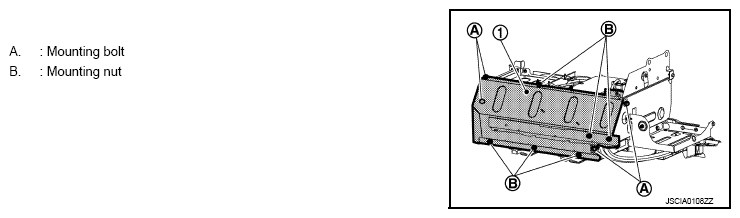

Fig 1: Identifying DC/DC Converter And Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the rear battery cover (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

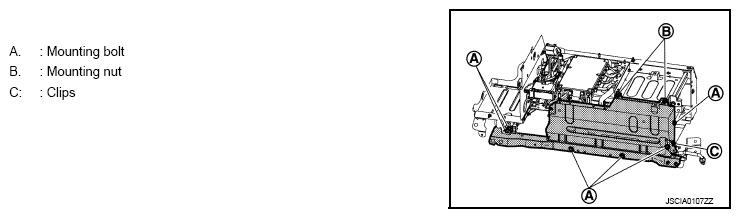

Fig 2: Identifying Rear Battery Cover, Mounting Bolts And Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the front battery cover (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

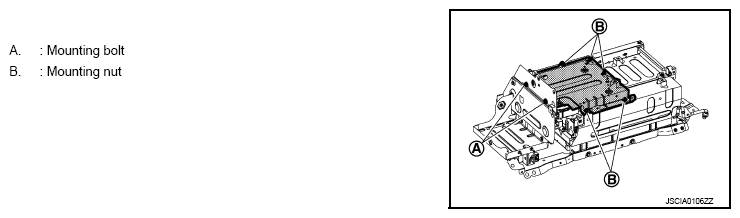

Fig 3: Identifying Front Battery Cover And Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the mounting bolts (A) and harness connectors (B), then remove the Li-ion battery controller (1).
WARNING:
- To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
  Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools
- To prevent electric shock hazards, immediately wrap insulating tape around disconnected high voltage connector terminals.

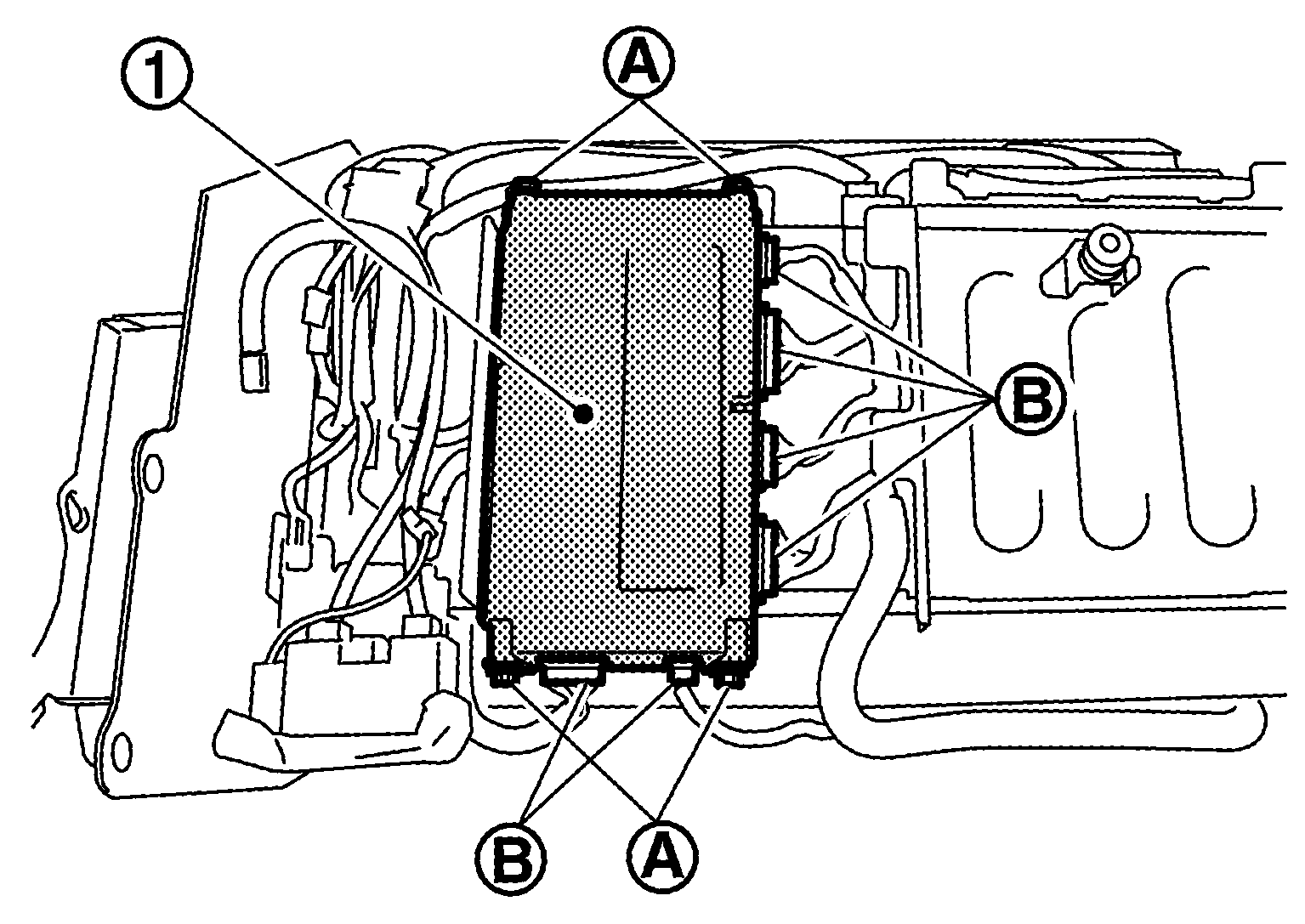

  Fig 4: Identifying Li-ion Battery Controller And Mounting Bolts
  Courtesy of NISSAN NORTH AMERICA, INC.
