MODULE STACK: Disassembly and Assembly: Disassembly

Remove the DC/DC converter (1). Refer to "DC/DC CONVERTER: DISASSEMBLY AND ASSEMBLY ".
Remove the battery junction box. Refer to "BATTERY JUNCTION BOX: DISASSEMBLY AND ASSEMBLY ".
Remove Li-ion battery controller. Refer to "LI-ION BATTERY CONTROLLER: DISASSEMBLY AND ASSEMBLY ".

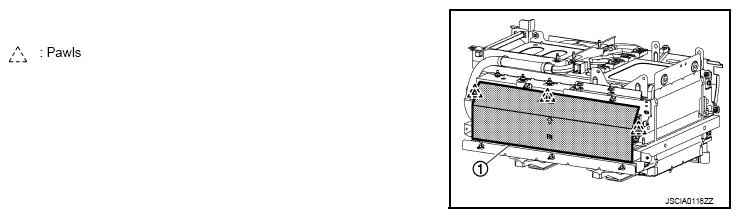

Remove the front harness protector (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear.
Use Insulated Gloves, Insulated Footwear & Safety Glasses

Fig 1: Identifying Front Harness Protector
Courtesy of NISSAN NORTH AMERICA, INC.

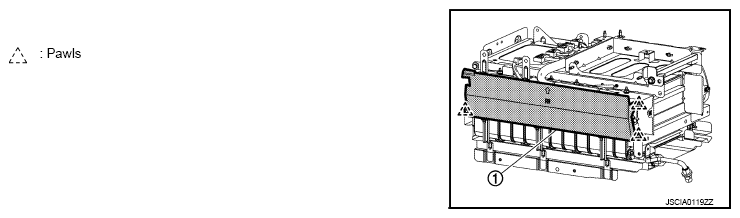

Remove the rear harness protector (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear.
Use Insulated Gloves, Insulated Footwear & Safety Glasses

Fig 2: Identifying Rear Harness Protector
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the mounting nuts (A), then disconnect the high-voltage harness (1).
WARNING:
- Touching high voltage components without using the appropriate protective equipment will cause electrocution.
  Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools
- To prevent electric shock hazards, immediately wrap insulating tape around disconnected high voltage connector terminals.

  Fig 3: Identifying High-Voltage Harness And Mounting Nuts
  Courtesy of NISSAN NORTH AMERICA, INC.

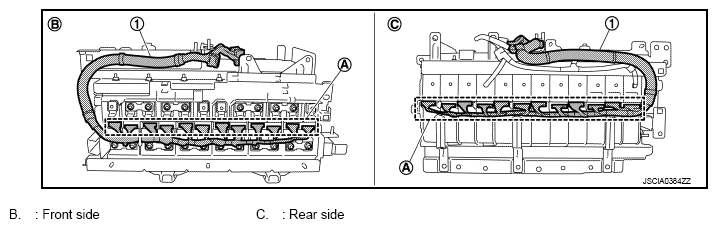

Disconnect the harness connectors (A), then remove the cell voltage detection harness (1).
WARNING:
- To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
  Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools
- To prevent electric shock hazards, immediately wrap insulating tape around disconnected high voltage connector terminals.

  Fig 4: Identifying Cell Voltage Detection Harness
  Courtesy of NISSAN NORTH AMERICA, INC.
- Disconnect the harness connectors using insulated long-nose pliers (A). Be careful not to pinch the harness.

  Fig 5: Disconnecting Harness Connectors Using Insulated Long-Nose Pliers
  Courtesy of NISSAN NORTH AMERICA, INC.

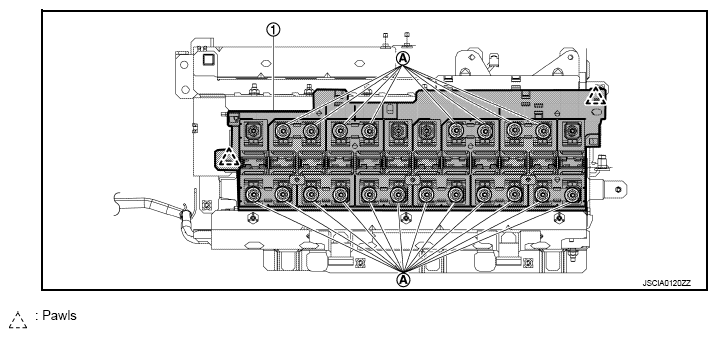

Remove the mounting nuts (A), and then remove the bus bar (1).
WARNING: Touching high voltage components without using the appropriate protective equipment will cause electrocution.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 6: Identifying Bus Bar And Mounting Nuts
Courtesy of NISSAN NORTH AMERICA, INC.
Protect all module terminals (A) using insulating tape so that they are not exposed.
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear.
Use Insulated Gloves, Insulated Footwear & Safety Glasses

Fig 7: Identifying Module Terminals
Courtesy of NISSAN NORTH AMERICA, INC.

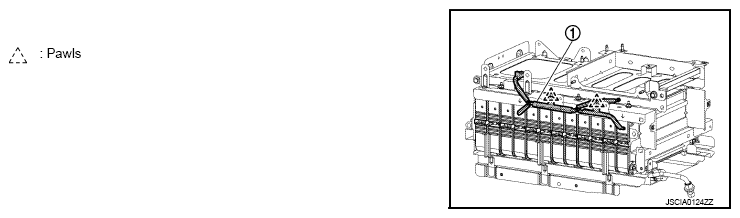

Remove the battery temperature sensor (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 8: Identifying Battery Temperature Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the mounting nuts (A), and then remove the upper battery cover (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 9: Identifying Upper Battery Cover And Mounting Nuts
Courtesy of NISSAN NORTH AMERICA, INC.
Turn the module stack so that the bottom faces up, then remove the mounting nuts (A), and then the lower battery cover (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 10: Identifying Lower Battery Cover And Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the gas discharge tube (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 11: Identifying Gas Discharge Tube
Courtesy of NISSAN NORTH AMERICA, INC.

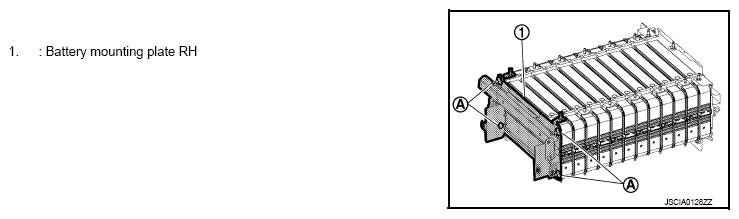

Loosen the through-bolt mounting nuts (A).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 12: Identifying Battery Mounting Plate RH And Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.

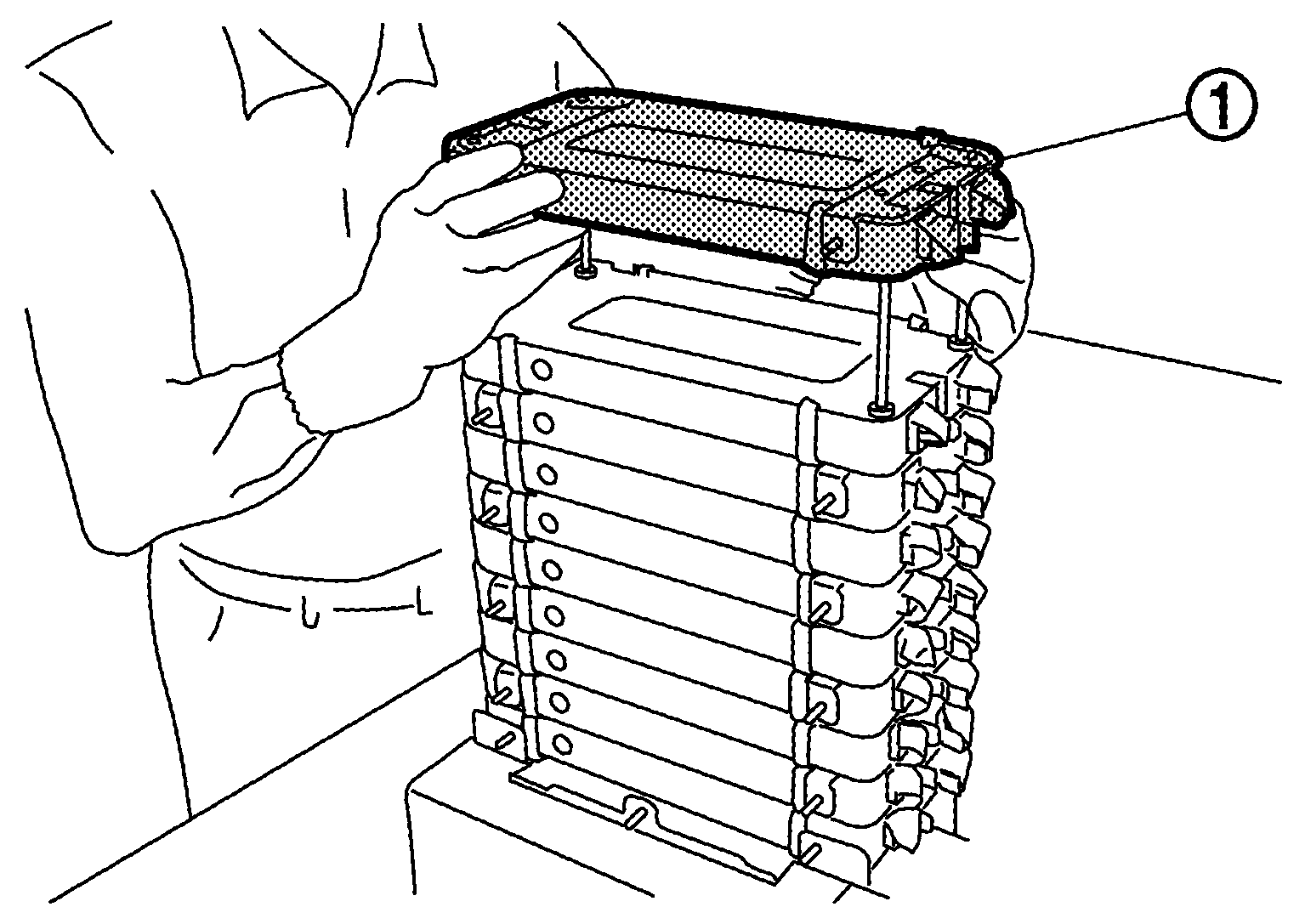

Stand the module stack as shown in the figure below, then remove the module (1).
WARNING: To prevent electric shock hazards, be sure to put on insulated protective gear and use insulated tools.
Use Insulated Gloves, Insulated Footwear, Safety Glasses & Insulated Tools

Fig 13: Identifying Li-ion Battery Module
Courtesy of NISSAN NORTH AMERICA, INC.
