Method Of Starting

NOTE: Start condition of on board self-diagnosis

Turn the ignition switch OFF.
Set the vehicle to READY.
Wait for 5 seconds after setting the vehicle to READY. Push up the RESUME/ACCELERATE switch 5 times and push down the SET/COAST switch 5 times within 10 seconds.
NOTE: If the above operation cannot be performed within 10 seconds after waiting for 5 seconds after setting the vehicle to READY, repeat the procedure from step 1.

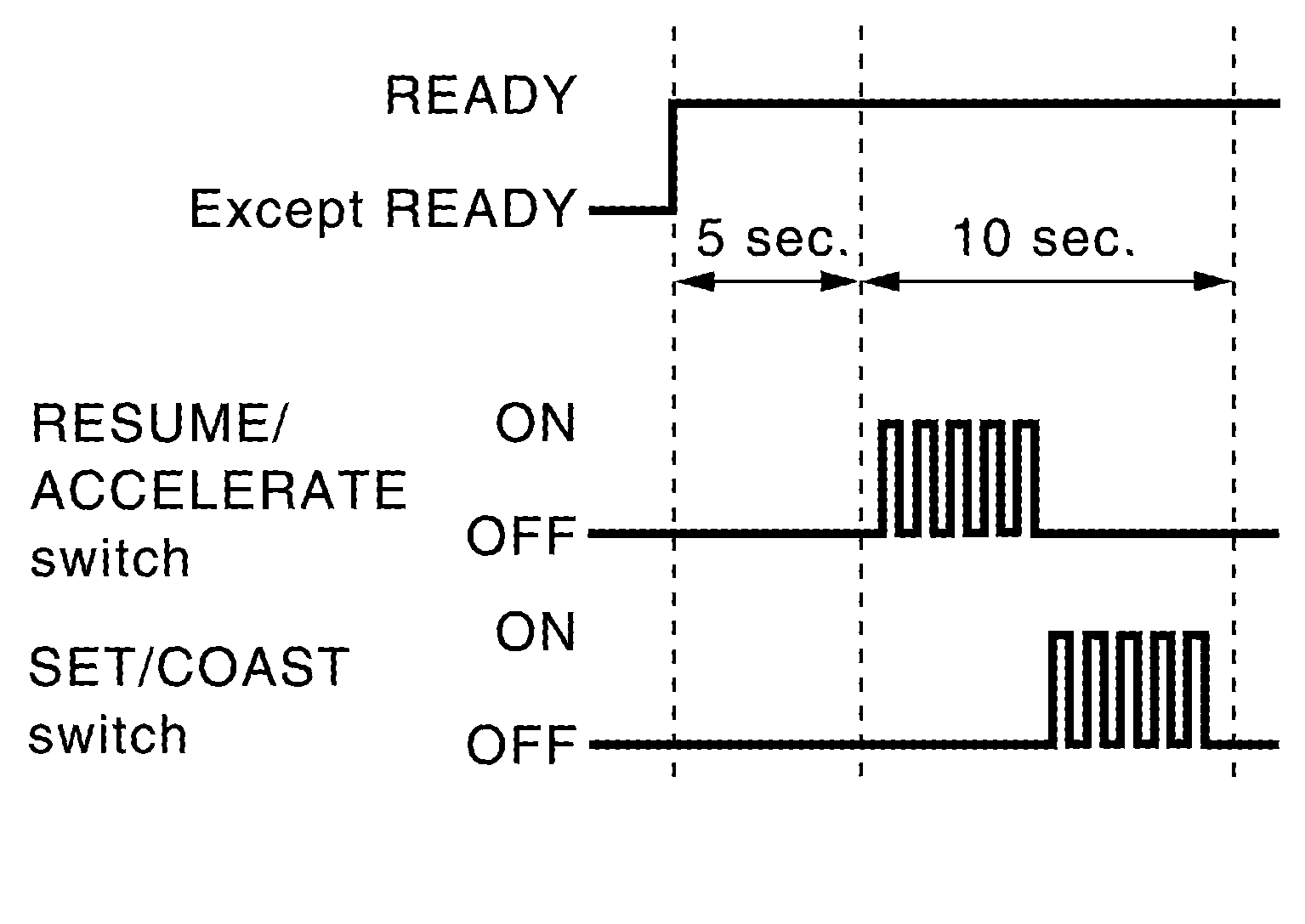

Fig 1: Resume/Accelerate And Set/Coast On Board Self-Diagnosis Operation Pattern
Courtesy of NISSAN NORTH AMERICA, INC.
The DTC is displayed on the set vehicle speed indicator (1) on the ICC system display on the information display when the on board self-diagnosis starts. Refer to "DTC INDEX ".

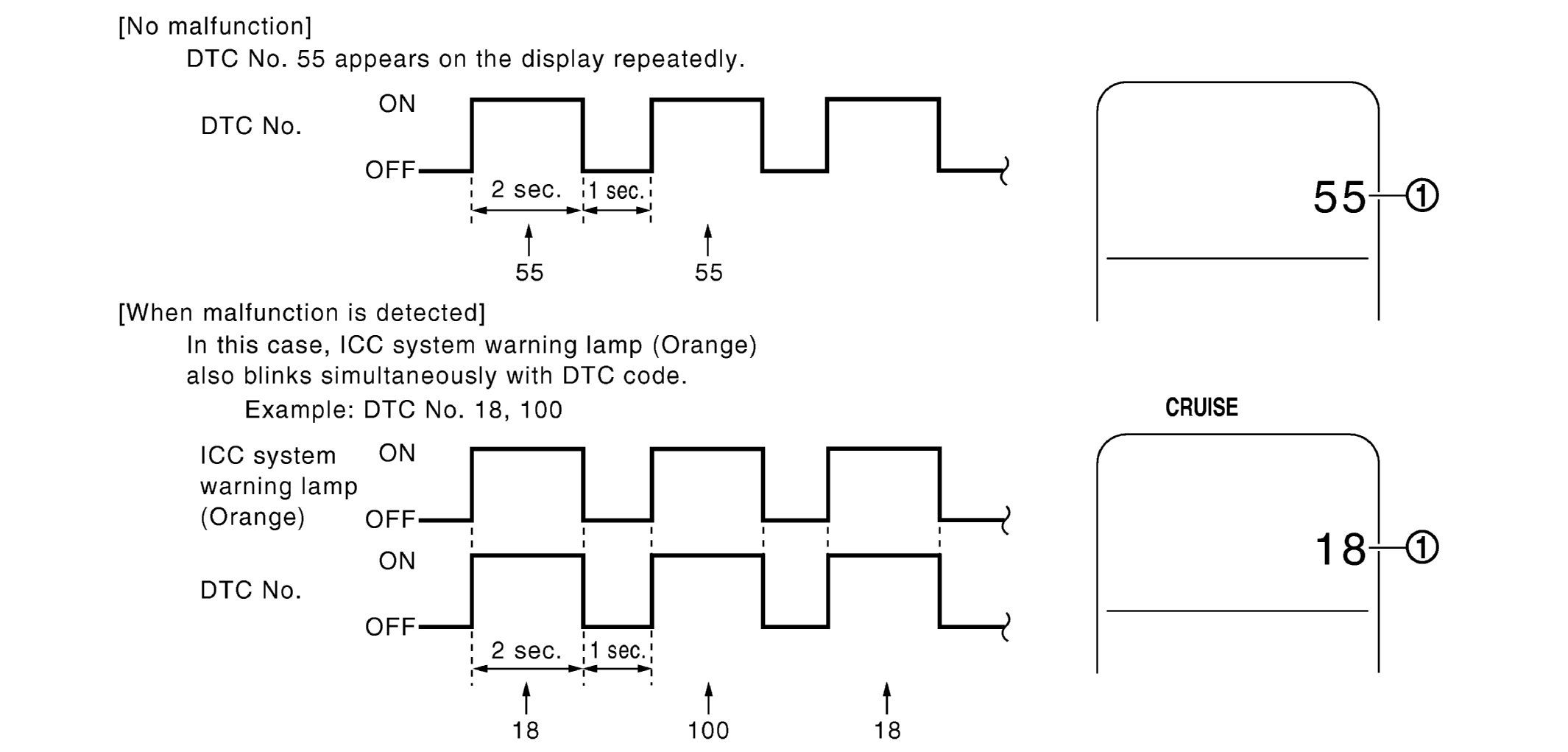

Fig 2: DTC And ICC System Warning Lamp Wave Form
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
- It displays for up to 5 minutes and then stops.
- If multiple malfunctions exist, up to 6 DTCs can be stored in memory at the most, and the most recent one is displayed first.
