Lifting Sensor Control Unit Connector End View (B515)

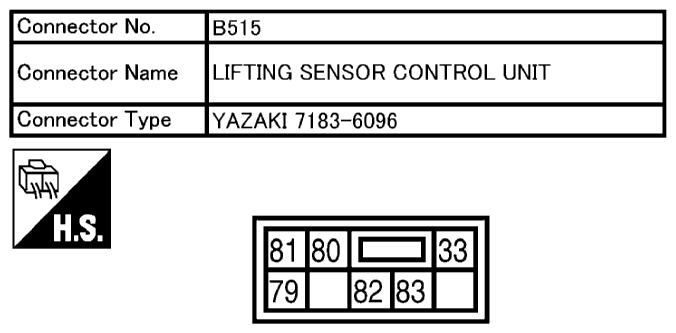

Fig 1: Lifting Sensor Control Unit Connector End View (B515)
G10682469Courtesy of NISSAN NORTH AMERICA, INC.
