Power Steering Control Module Connector End View (E97)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Steering Control Module Connector End View (E97)

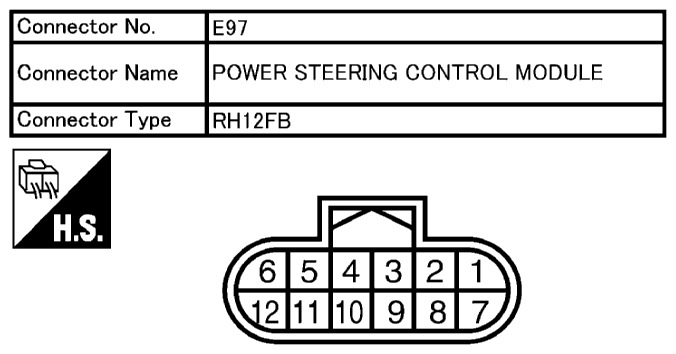

Fig 1: Power Steering Control Module Connector End View (E97)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
