CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

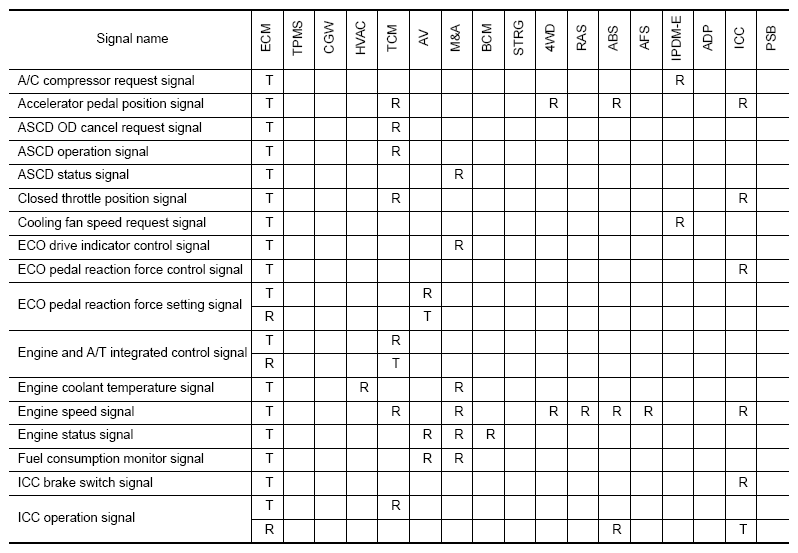

Fig 1: Identifying CAN Communication Signal Chart (1 Of 5)
G08655210Courtesy of NISSAN NORTH AMERICA, INC.

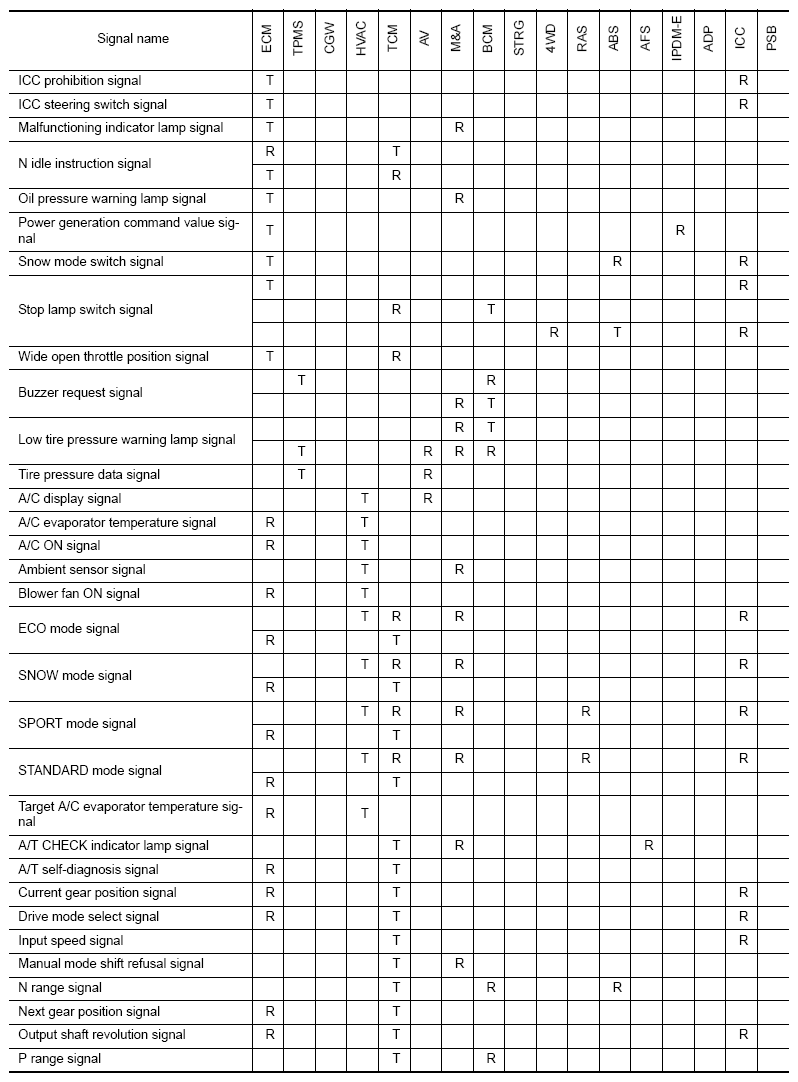

Fig 2: Identifying CAN Communication Signal Chart (2 Of 5)
G08655211Courtesy of NISSAN NORTH AMERICA, INC.

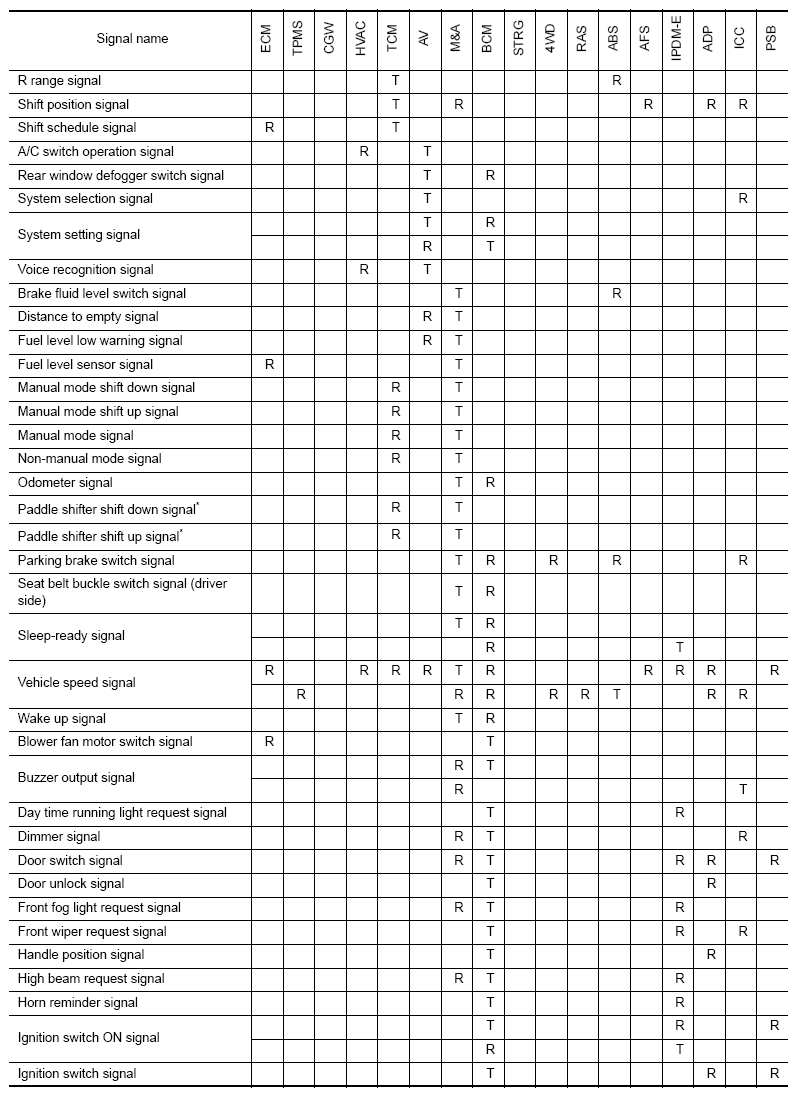

Fig 3: Identifying CAN Communication Signal Chart (3 Of 5)
G08655212Courtesy of NISSAN NORTH AMERICA, INC.

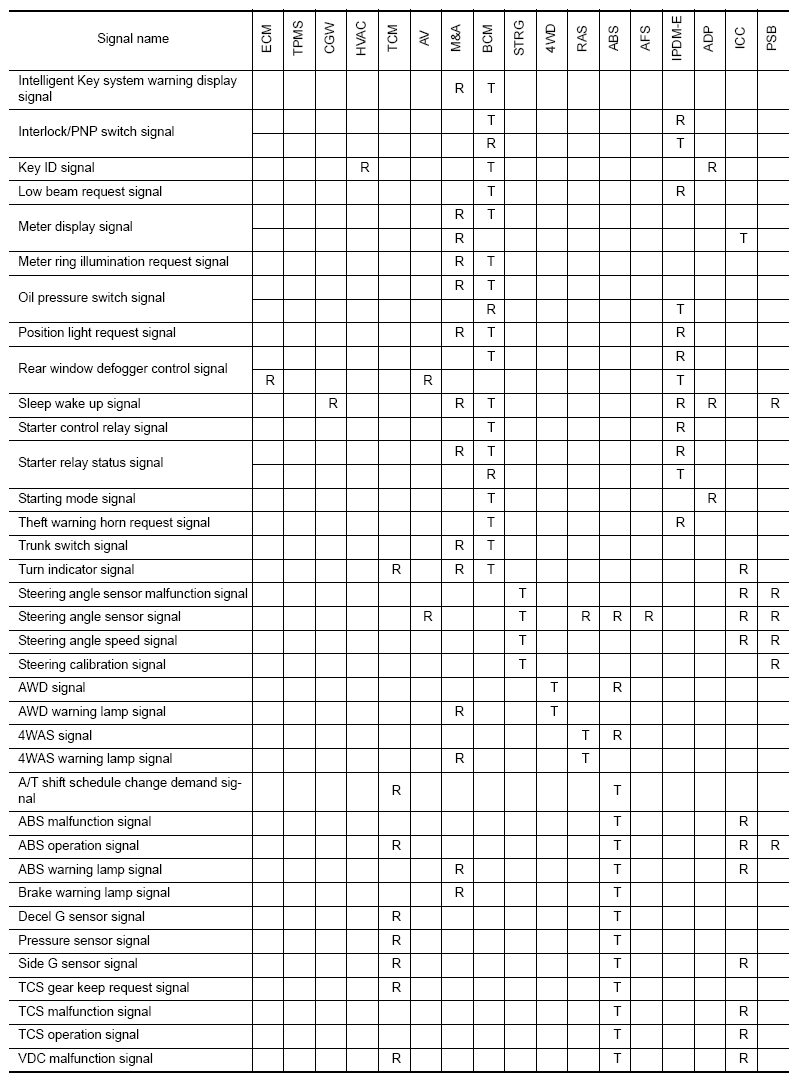

Fig 4: Identifying CAN Communication Signal Chart (4 Of 5)
G08655213Courtesy of NISSAN NORTH AMERICA, INC.

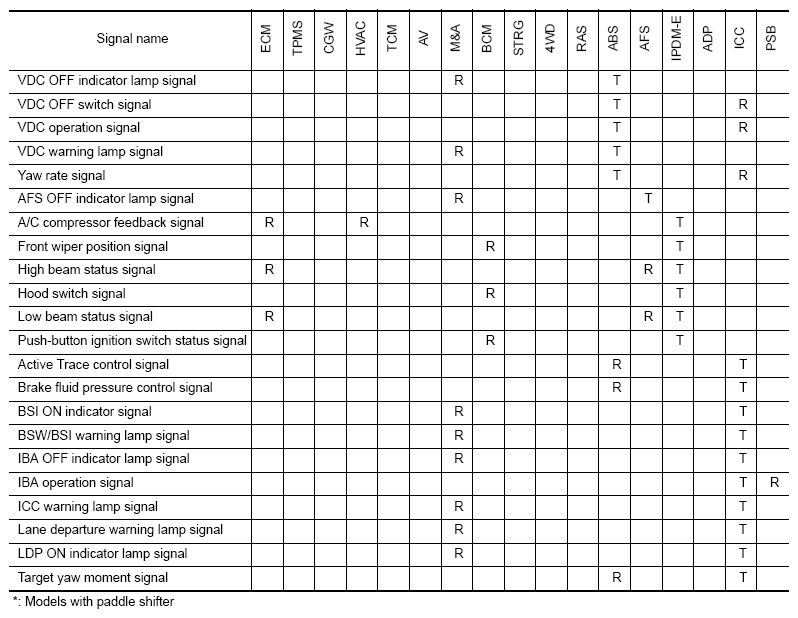

Fig 5: Identifying CAN Communication Signal Chart (5 Of 5)
G08655214Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
