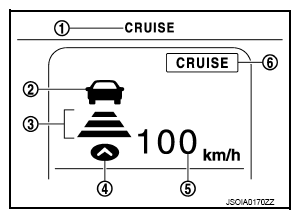

| 1 |
ICC system warning lamp |
Indicates that a malfunction occurs in the ICC system |
| 2 |
Vehicle ahead detection indicator |
Indicates whether it detects a vehicle ahead |
| 3 |
Set distance indicator |
Indicates the selected distance between vehicles set with the DISTANCE switch |
| 4 |
Own vehicle indicator |
Indicates the own vehicle |
| 5 |
Set vehicle speed indicator |
- Indicates the set vehicle speed
- Indicates 32 km/h (20 MPH) when setting less than 32 km/h (20 MPH)
|
| 6 |
MAIN switch indicator |
Indicates that the MAIN switch is ON (ICC system ON) |
