Display And Warning Lamp

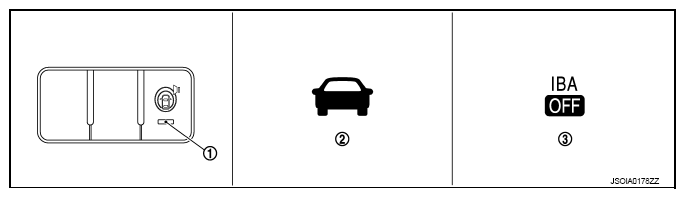

Fig 1: Identifying Warning Systems On Indicator, Vehicle Ahead Detection Indicator And IBA Off Indicator Lamp
G07018503Courtesy of NISSAN NORTH AMERICA, INC.
No. Display item Description
1 Warning systems ON indicator
  • Indicates that the FCW system, LDW system, and/or BSW system is ON.
  • Blinks when the setting of LDW, FCW, and BSW are "OFF" and the warning systems switch is pressed.
2 Vehicle ahead detection indicator Vehicle ahead detection indicator blinks when the FCW system is activated
3 IBA OFF indicator lamp IBA OFF indicator lamp turns ON when:
  • FCW system has a malfunction
  • ICC sensor window is too dirty to detect a vehicle ahead
  • Subjected to a strong light (e.g. sunlight)
    NOTE: Shared with IBA system
