Switch Name and Function

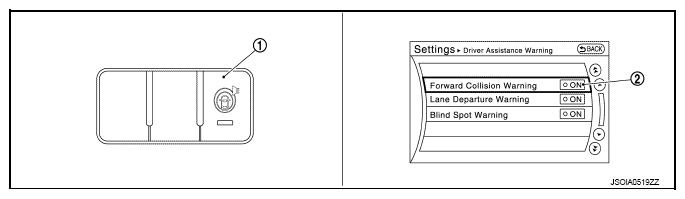

Fig 1: Identifying Warning Systems Switch And FCW System Setting Screen
G08243782Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1 Warning systems switch Turns FCW system ON/OFF (When the setting of FCW system on the navigation system setting screen is ON)
2 FCW system setting screen (Navigation system settings screen) The setting of FCW system can be switched between ON and OFF
