Method Of Starting

Perform Self-diagnosis, according to the following steps:

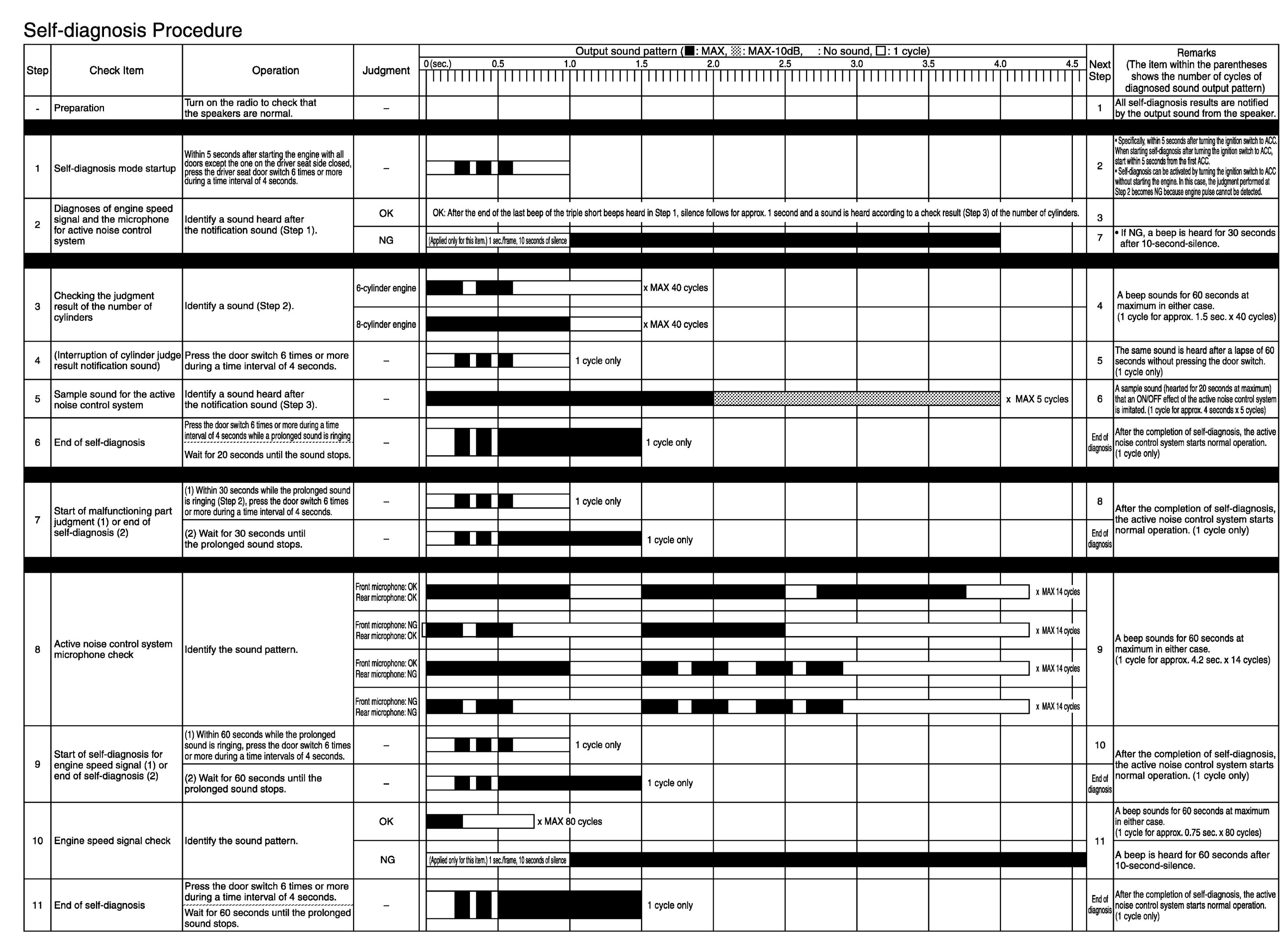

Fig 1: Identifying Self-Diagnosis Procedure Chart

Courtesy of NISSAN NORTH AMERICA, INC.

• When a sound is not outputted from the speakers as a result of the preparation, check the AV control unit, BOSE amp., connector connections, or speakers.
• When Self-diagnosis mode does not start at Step 1, check the door state signal circuit.
• When a malfunction is detected in the microphone at Step 8, check the signal circuit of each microphone.
• When the actual number of cylinders is different from the diagnosis sound of the cylinder identification, check the cylinder identification signal circuit.
