Outside Key Antenna Detection Area

The outside key antenna detection area of trunk open function is in the range of approximately 80 cm (31.50 in) surrounding trunk opener request switch (1). However, this operating range depends on the ambient conditions.

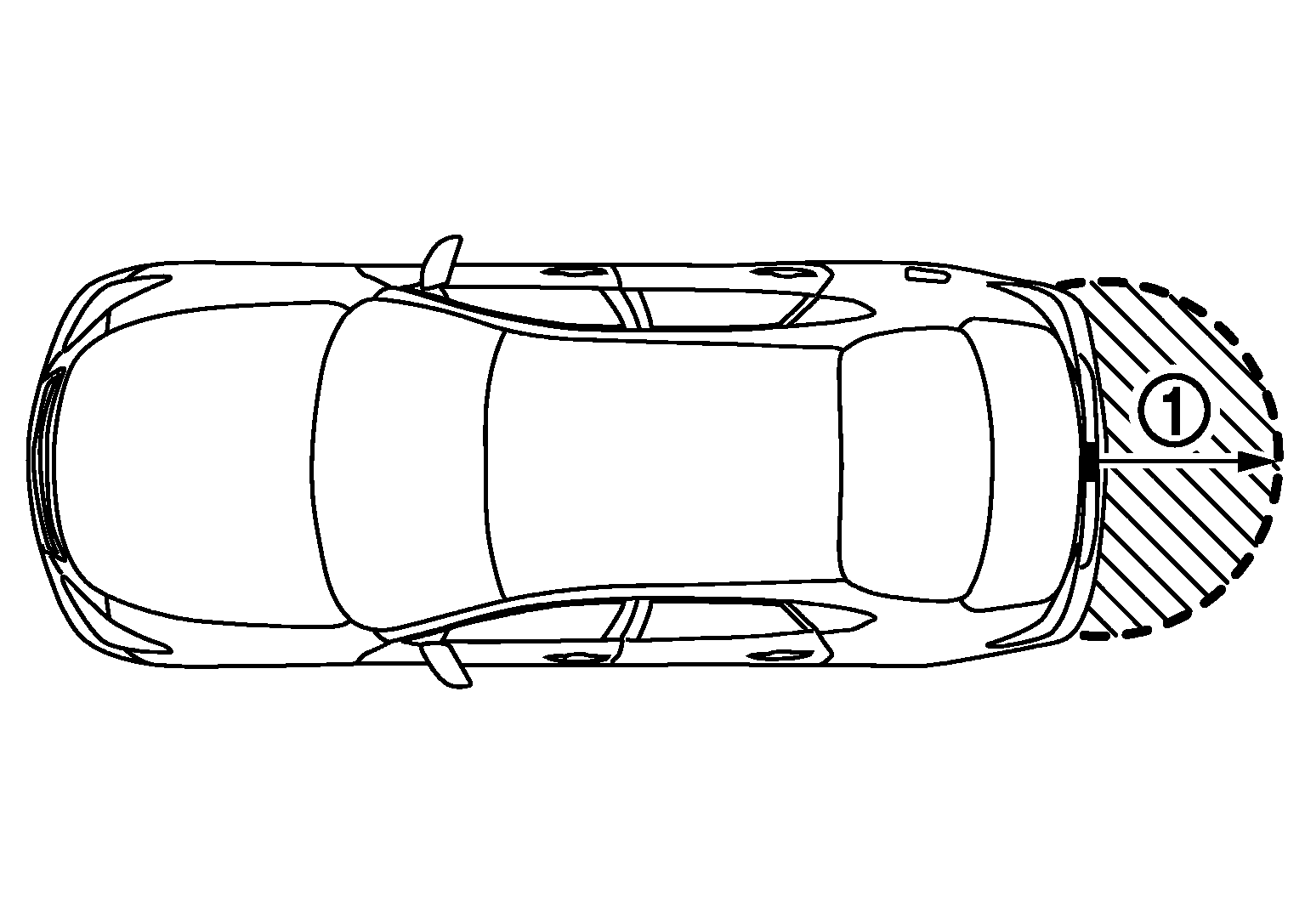

Fig 1: Identifying Outside Key Antenna Detection Area

Courtesy of NISSAN NORTH AMERICA, INC.
