Operation Description
The IBA system uses a ICC sensor located below the front bumper to measure the distance to a vehicle ahead. When the system judges that the distance gets shorter, the vehicle ahead detection indicator on the combination meter blinks and the warning chime sounds.
To turn the system OFF/ON, push and hold the IBA OFF switch after starting the engine for more than 1 second.
NOTE:
- The system ON/OFF condition will be memorized even if the ignition switch turns OFF.
- The IBA system operates under the following conditions.
- The IBA system will function when the vehicle is driven at speeds of approximately 15 km/h (10 MPH) and above, and when the vehicle's speed is approximately 15 km/h (10 MPH) faster than that of the vehicle ahead.

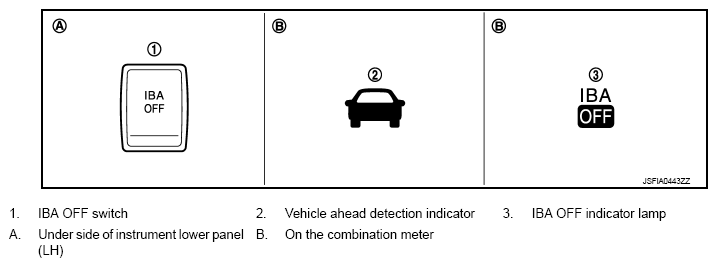

Switch and Indicators
Fail-safe Indication
| Condition | Description | Indication on the combination meter |
|---|---|---|
|
The system will be cancelled automatically with a beep sound. | |
| When driving into a strong light (i.e. sunlight) | The system is temporary unavailable. (Without the warning chime) |
NOTE:
When the IBA turns OFF, the IBA OFF indicator lamp will illuminate.
