Operation And Display

Forest Air Display

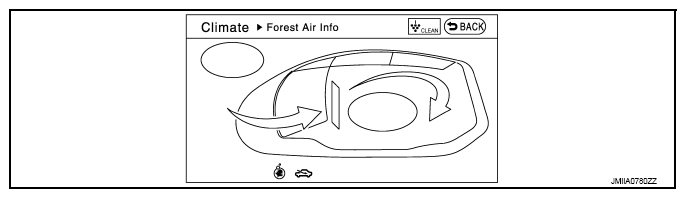

• Forest Air system state is indicated on the display.
• "Climate" menu is indicated on display when CLIMATE switch of multifunction switch is pressed while FOREST switch is ON. Operation status of Forest Air system is displayed when "Forest Air Info" is touched.

Air flow control (inside odor detecting mechanism)

• Display is switched as per the following description depending on interior air status

• Interior air status display (1) is blue, while interior air is in clean status.
• Interior air status display (1) is orange, while interior air is in dirty status.
  NOTE: Interior air status display is not indicated, while air inlet is in manual control status.
  Fig 2: Identifying Interior Air Status Display

  Courtesy of NISSAN NORTH AMERICA, INC.

Aroma diffuser control

• Display is switched as shown in the figure below, depending on type of aroma, while aroma diffuser operates.

• Leaf scent
  Fig 3: Identifying Leaf Scent

  Courtesy of NISSAN NORTH AMERICA, INC.
• Fragrant wood
  Fig 4: Identifying Fragrant Wood

  Courtesy of NISSAN NORTH AMERICA, INC.

Automatic defogging control

• Window portion (1) changes to white and automatic defogging operates, when windshield fogging is detected.
  Fig 5: Identifying Automatic Defogging Control Screen Display

  Courtesy of NISSAN NORTH AMERICA, INC.

Automatic intake control (exhaust gas/outside odor detecting mechanism)

• Display is switched as per the following description depending on ambient air status, air inlet status, and switching status of recirculation and fresh air intake.

• Ambient air status display (1) is blue, while ambient air is in clean status.
• Ambient air status display (1) is orange, while ambient air is in dirty status.
  NOTE: Ambient air status display is not indicated, while air inlet is in manual control status.
  Fig 6: Identifying Ambient Air Status Screen Display

  Courtesy of NISSAN NORTH AMERICA, INC.
• Air inlet status is indicated by an arrow (1). Lower display (2) indicates air inlet status and control status (automatic control/manual control)

  Air inlet status	Control status	Display
  Recirculation	Automatic control	"RECIRCULATE"
  	Manual operation	"RECIRCULATE" Manual Mode
  Fresh air intake	Automatic control	"FRESH AIR"
  	Manual operation	"FRESH AIR" Manual Mode

  Fig 7: Identifying Air Inlet Status Screen Display

  Courtesy of NISSAN NORTH AMERICA, INC.

Breezy air control

• Animation that is imaged from breezy air (1) is displayed, while breezy air control is operated.
  Fig 8: Identifying Breezy Air Screen Display

  Courtesy of NISSAN NORTH AMERICA, INC.

Plusmacluster™ control

• Plasmacluster ™ ion display is switched as shown in the figure below depending on air flow.
  NOTE:

  • Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
  • Plasmacluster™ is a trademark of Sharp Corporation.

• When air flow is small
  Fig 9: Identifying Plasmacluster™ System Switch Display (Low Air Flow)

  Courtesy of NISSAN NORTH AMERICA, INC.
• When air flow is large
  Fig 10: Identifying Plasmacluster™ System Switch Display (High Air Flow)

  Courtesy of NISSAN NORTH AMERICA, INC.

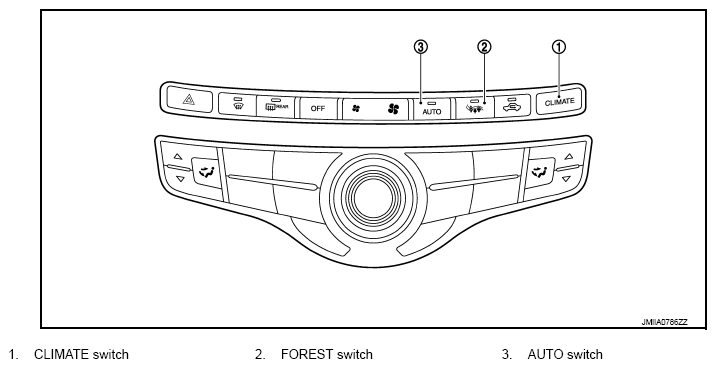

Forest Air Controller (Multifunction switch)

Switch name	Function
AUTO switch	When this switch is pressed, AUTO switch indicator lamp, "AUTO", and "AUTO DEF" on display turn ON, and then automatic defogging control starts.
CLIMATE switch	"Climate" menu is indicated on display when this switch is pressed.
FOREST switch	When this switch is pressed, AUTO switch indicator lamp, FOREST switch indicator lamp, "AUTO", and "AUTO DEF" on display turn ON, and then Forest Air system starts automatic control.
