AUTOMATIC AIR CONDITIONING SYSTEM (WITH FOREST AIR): Air Inlet Control

Intake door automatic control selects FRE, 20 - 80% FRE, or REC depending on a target air mix door opening angle.

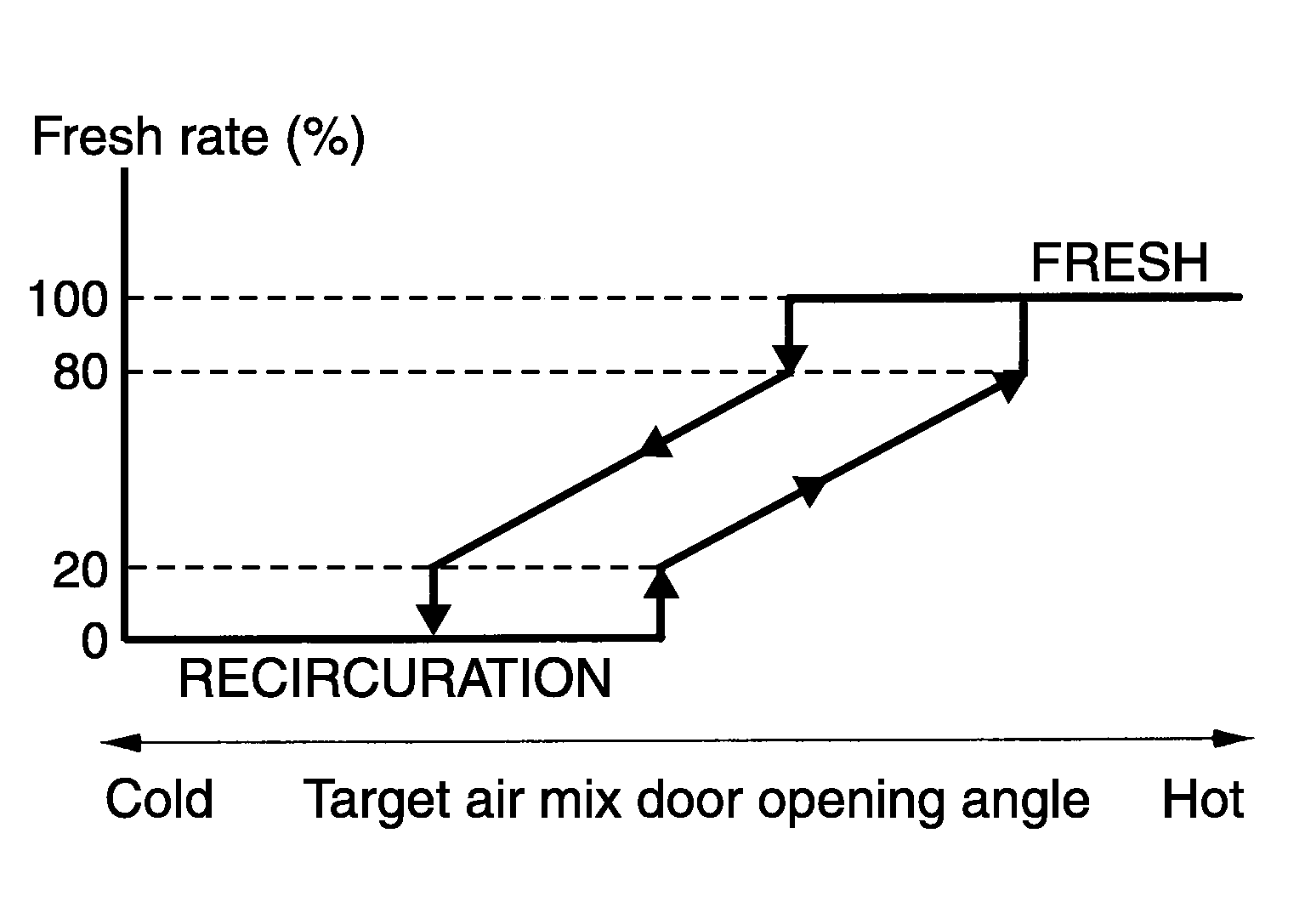

Fig 1: Identifying Target Air Mix Door Opening Angle Graph (Air Inlet Control)

Courtesy of NISSAN NORTH AMERICA, INC.
