Switches And Their Control Functions

NOTE: For LH/RH independent temperature and air outlet adjustment function, construction indicated by broken line as shown in the figure below is divided to driver side and passenger side by divider plate.

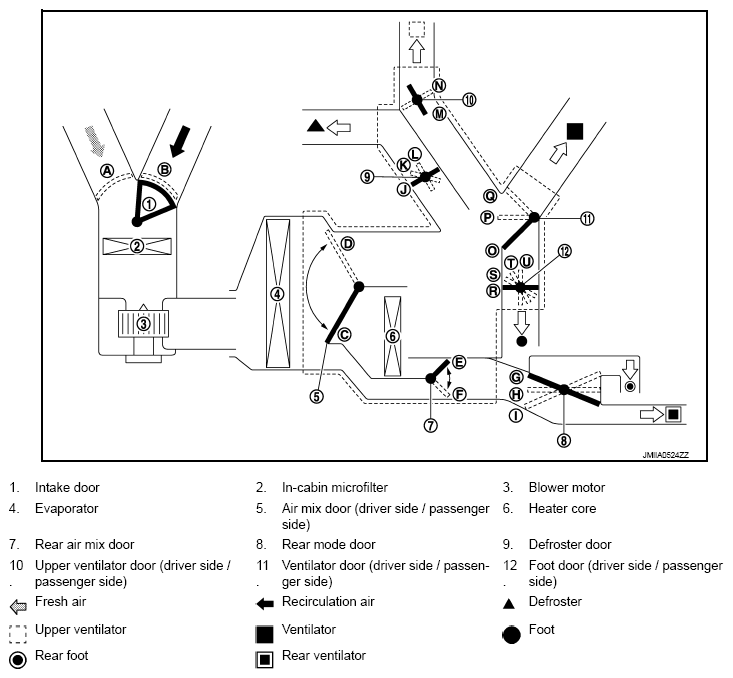

Fig 1: Identifying Control Functions Operation Diagram
G08648488Courtesy of NISSAN NORTH AMERICA, INC.

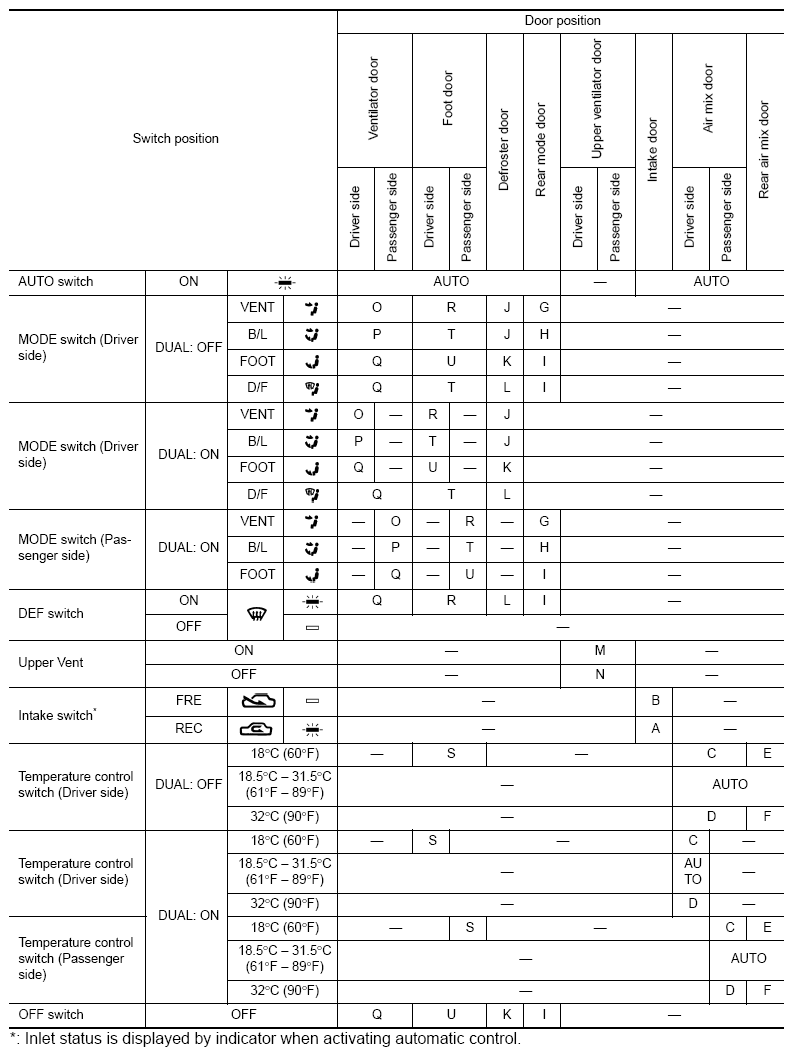

Fig 2: Identifying Switches And Control Function Chart
G08648489Courtesy of NISSAN NORTH AMERICA, INC.
