Front Outside Handle Assembly RH Connector End View (D47)

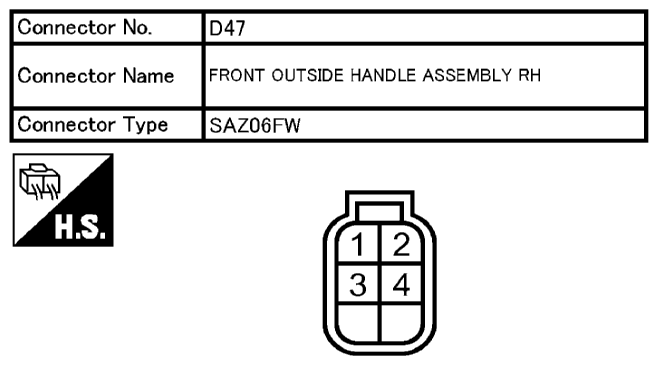

Fig 1: Front Outside Handle Assembly RH Connector End View (D47)
G10677887Courtesy of NISSAN NORTH AMERICA, INC.
