Fuel Level Sensor Unit And Fuel Pump (Main) Connector End View (B241)

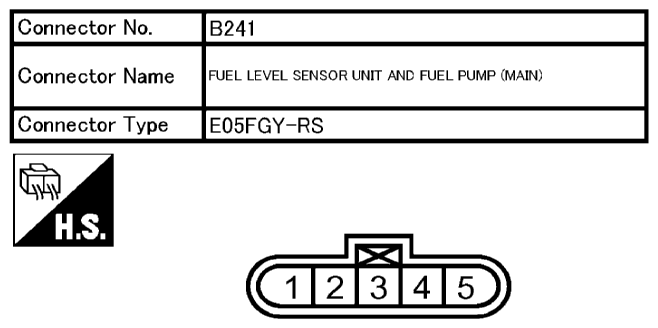

Fig 1: Fuel Level Sensor Unit And Fuel Pump (Main) Connector End View (B241)
Courtesy of NISSAN NORTH AMERICA, INC.
