Combination Meter

The buzzer (1) for the warning chime system is integrated in the combination meter.

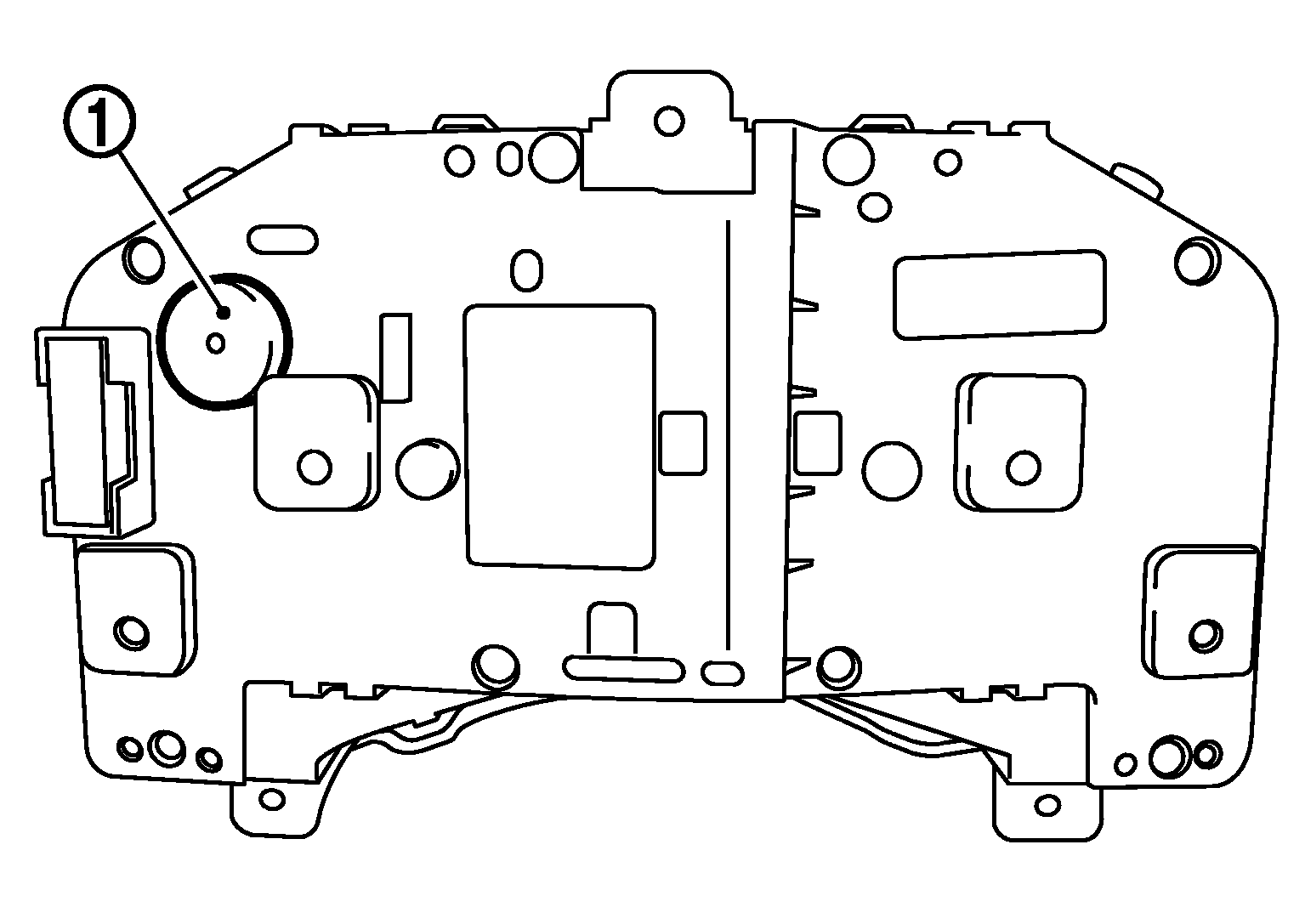

Fig 1: Identifying Buzzer
G07021183Courtesy of NISSAN NORTH AMERICA, INC.
