AUTOMATIC DRIVE POSITIONER SYSTEM: System Diagram

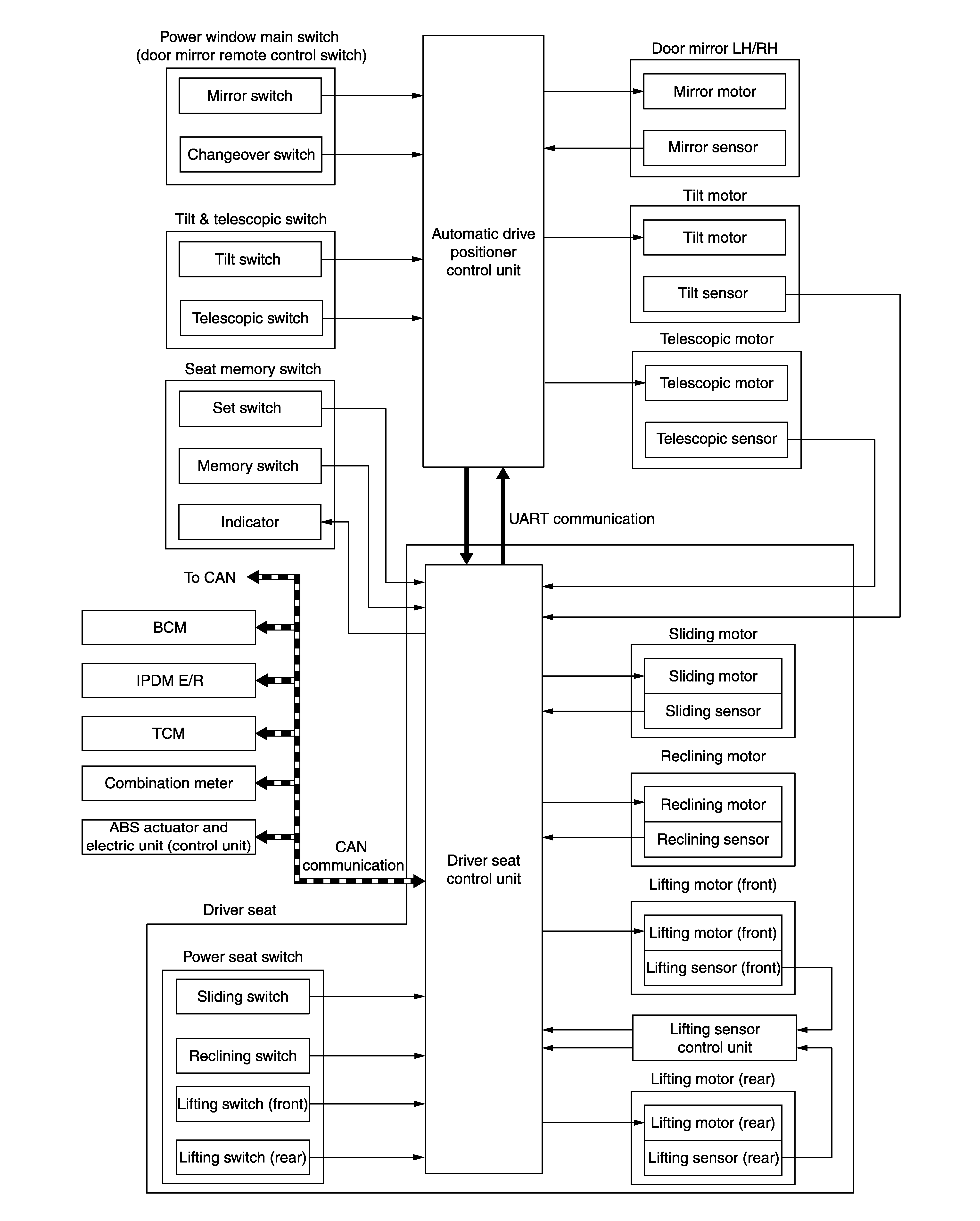

Fig 1: Automatic Drive Positioner System Diagram
G07020850Courtesy of NISSAN NORTH AMERICA, INC.
