Exploded View

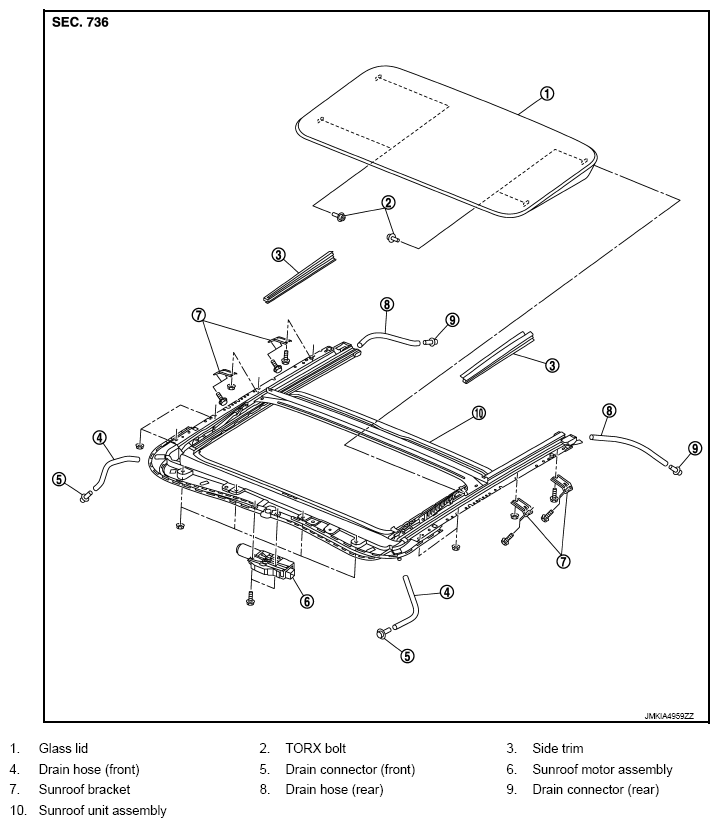

Fig 1: Exploded View Of Sunroof Glass Lid
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
