Exploded View

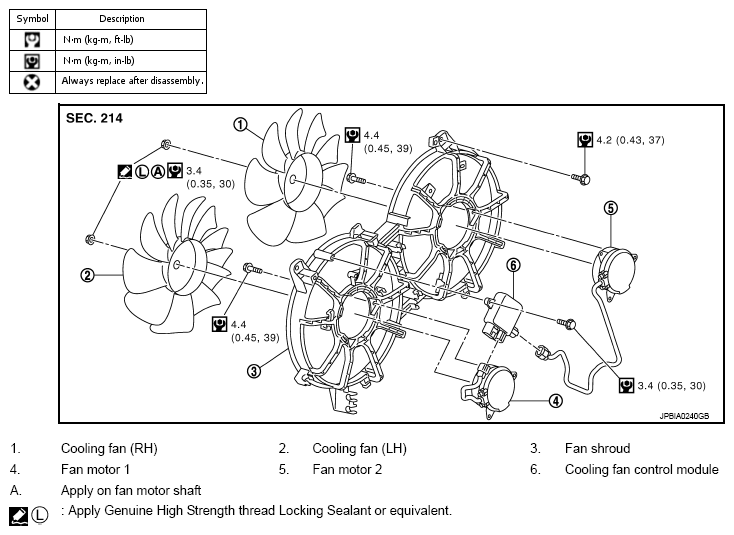

Fig 1: Exploded View Of Cooling Fan With Torque Specification
G08649030Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
