Diagnosis Procedure

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve (1) and the housing.

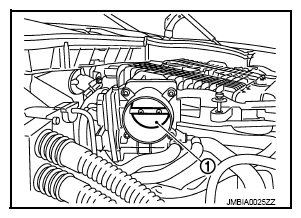

  Fig 1: Identifying Throttle Valve
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: GO TO 2.

  NO: Remove the foreign matter and clean the electric throttle control actuator inside, and then perform throttle valve closed position leaning. Refer to "WORK PROCEDURE ".
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace malfunctioning electric throttle control actuator.
2. Go to "SPECIAL REPAIR REQUIREMENT ".
  : INSPECTION END
