DIAGNOSIS DESCRIPTION: Malfunction Indicator Lamp (MIL)

When emission related ECU detects a malfunction in the emission control systems components and/or the powertrain control components (which affect vehicle emissions), it turns on/blinks MIL to inform the driver that a malfunction has been detected.

1. The MIL illuminates when ignition switch is turned ON (engine is not running).
   NOTE: Check the MIL circuit if MIL does not illuminate. Refer to "COMPONENT FUNCTION CHECK ".
2. When the engine is started, the MIL should go off.

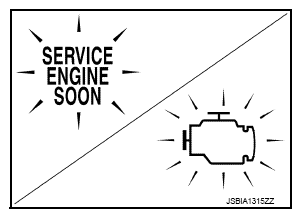

   Fig 1: Identifying Malfunction Indicator Lamp

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE: If MIL continues to illuminate/blink, perform self-diagnoses and inspect/repair accordingly because an emission related ECU has detected a malfunction in the emission control systems components and/or the powertrain control components (which affect vehicle emissions).
