Symptom Table

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Perform "Data Monitor" of CONSULT to check for any malfunctioning item.
Check the malfunction combinations.

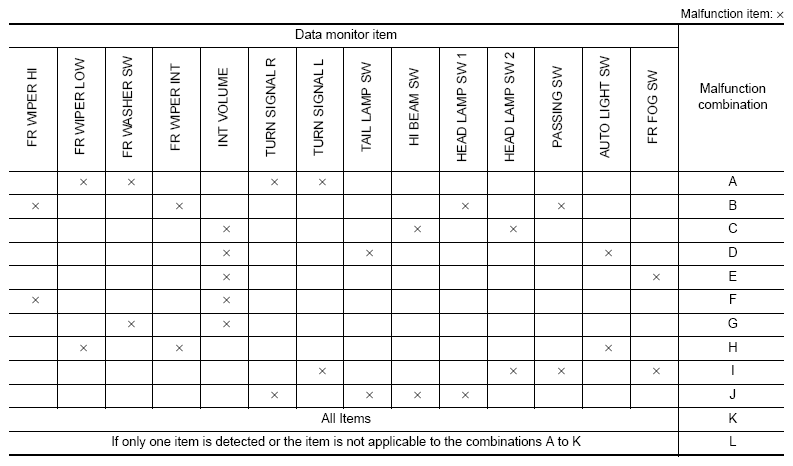

Fig 1: Combination Switch System Symptoms Chart
Courtesy of NISSAN NORTH AMERICA, INC.

Identify the malfunctioning part from the agreed combination and repair or replace the part.

Malfunction combination	Malfunctioning part	Repair or replace
A	Combination switch OUTPUT 1 circuit	Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
B	Combination switch OUTPUT 2 circuit
C	Combination switch OUTPUT 3 circuit
D	Combination switch OUTPUT 4 circuit
E	Combination switch OUTPUT 5 circuit
F	Combination switch INPUT 1 circuit	Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
G	Combination switch INPUT 2 circuit
H	Combination switch INPUT 3 circuit
I	Combination switch INPUT 4 circuit
J	Combination switch INPUT 5 circuit
K	BCM	Replace BCM. Refer to "REMOVAL AND INSTALLATION ".
L	Combination switch	Replace combination switch.
