Camera Cont.

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

The two functions of "Correct Draw Line of Rear view Cam", "Confirm Configuration" are available.

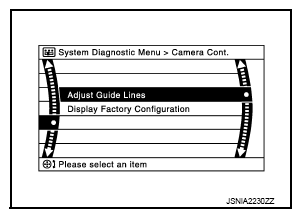

Fig 1: Identifying Camera Cont. System Diagnostic Menu Screen
G08884693Courtesy of NISSAN NORTH AMERICA, INC.
