Speaker Test

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

Select "Speaker Test" to display the Speaker Diagnosis screen. Press "Start" to generate a test tone in a speaker. Press "Start" again to generate a test tone in the next speaker. Press "End" to stop the test tones.

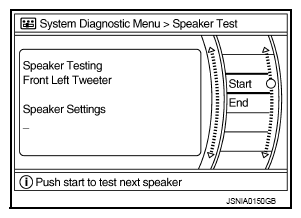

Fig 1: Identifying Speaker Test System Diagnostic Menu Screen
G08884691Courtesy of NISSAN NORTH AMERICA, INC.
