Vehicle CAN Diagnosis
WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

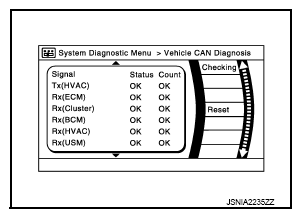

- CAN communication status and error counter is displayed.
- The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
- The error counter is erased if "Reset" is pressed.
| Items | Display (Current) | Malfunction counter (Past) |
|---|---|---|
| Tx(HVAC) | OK/??? | OK/0 - 39 |
| Rx(ECM) | OK/??? | OK/0 - 39 |
| Rx(Cluster) | OK/??? | OK/0 - 39 |
| Rx(BCM) | OK/??? | OK/0 - 39 |
| Rx(HVAC) | OK/??? | OK/0 - 39 |
| Rx(USM) | OK/??? | OK/0 - 39 |
| Rx(VDC) | OK/??? | OK/0 - 39 |
| Rx(STRG) | OK/??? | OK/0 - 39 |
|
NOTE:
"???" indicates UNKWN.
|
||
