MULTIFUNCTION Switch And Preset Switch Self-Diagnosis Function

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be checked.

Self-diagnosis Mode

• Press the "BACK" switch and the "UP" switch of the multifunction switches within 10 seconds after turning the ignition switch from OFF to ACC and hold them for 3 seconds or more. Then the buzzer sounds, all indicators of the multifunction switch and preset switch illuminate, and the self-diagnosis mode starts.
• The continuity of each switch at the ON position can be checked by pressing the switch. The buzzer sounds if the switch is normal.
  NOTE: The hazard switch and disk eject switch cannot be checked.

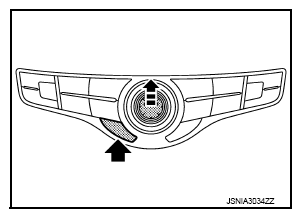

  Fig 1: Pressing Multifunction Back And Up Switch

  Courtesy of NISSAN NORTH AMERICA, INC.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.
