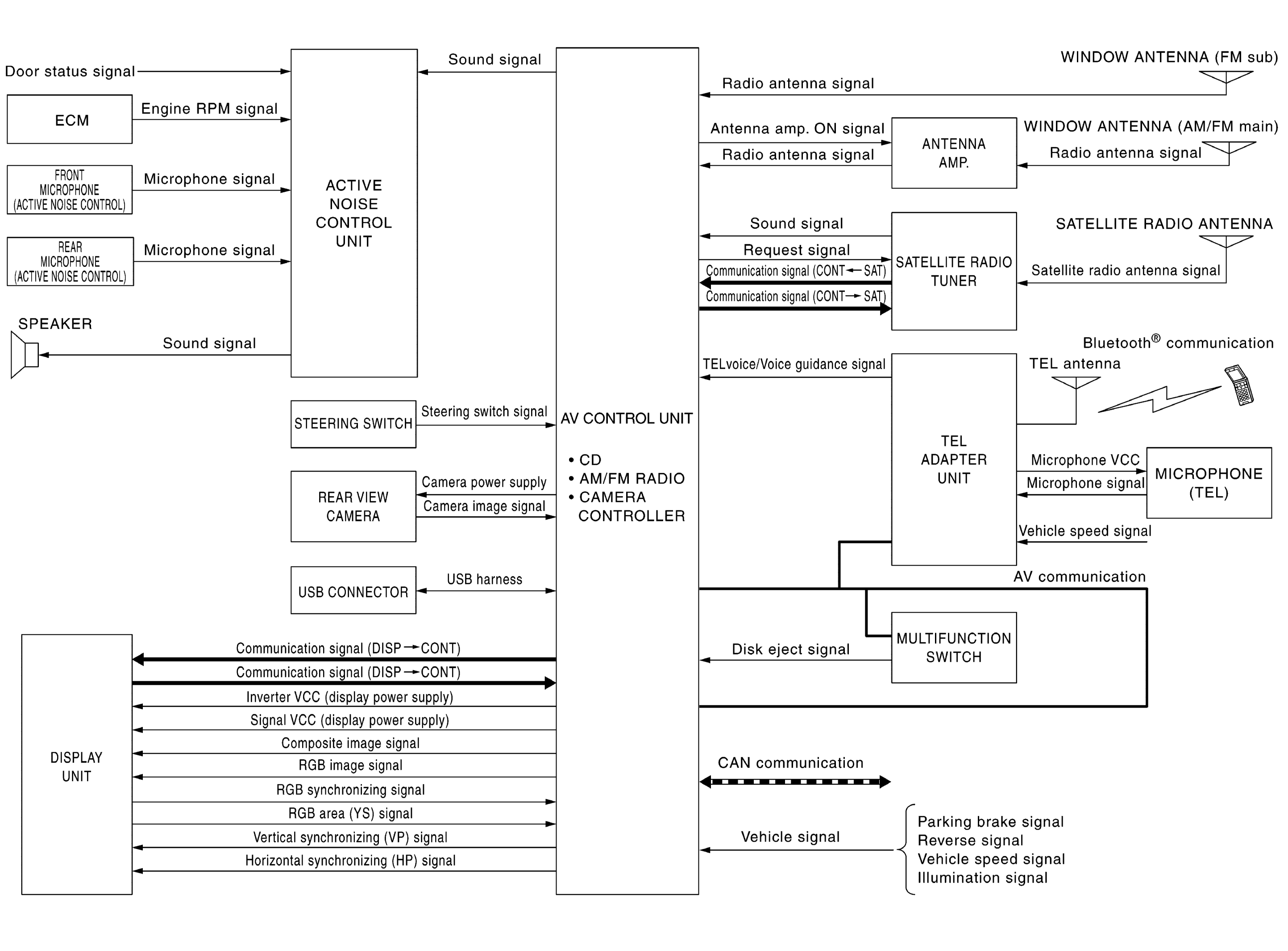

Fig 1: Multi AV System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
