Component Parts Location

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

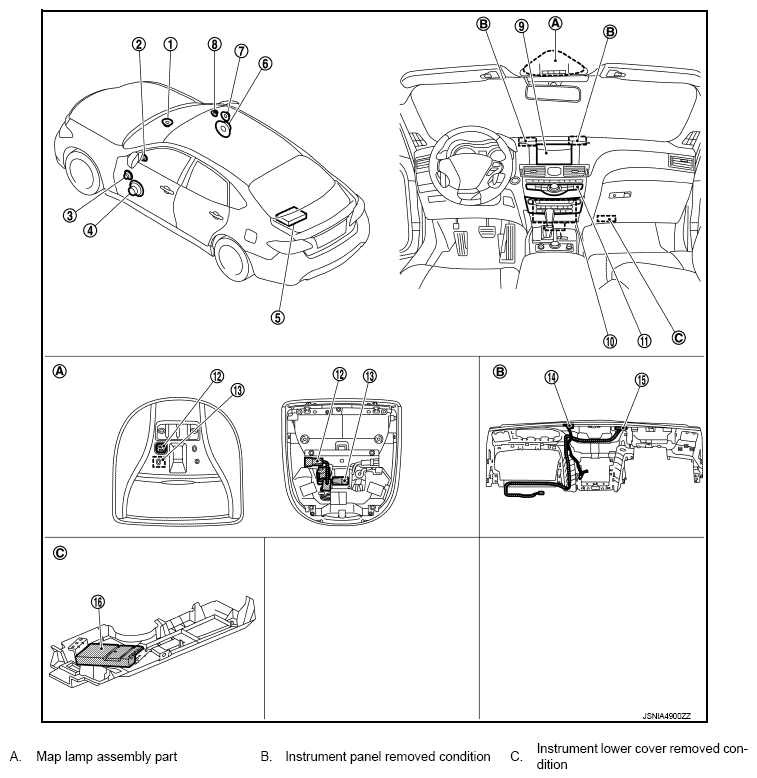

Fig 1: Telematics Component Parts Location
G08898355Courtesy of NISSAN NORTH AMERICA, INC.
No. Part name Description
1. Center speaker Outputs sound signal.
2. Tweeter LH
3. Front door squawker LH
4. Front door woofer LH
5. BOSE amp. Inputs sound signal from AV control unit, and outputs sound signal to each speaker.
6. Front door woofer RH Outputs sound signal.
7. Front door squawker RH
8. Tweeter RH
9. Display unit
  • Display image is controlled by the serial communication from AV control unit.
  • The RGB digital image signal and composite image signal are input to display unit.
  • Touch panel function can be operated for each system by touching a display directly.
10. AV control unit Refer to "AV CONTROL UNIT ".
11. Multifunction switch
  • Operation panel is equipped with the centralized switch where navigation and CARWINGS, etc. operations are integrated.
  • Connected with preset switch via cable, and operation signal is transmitted to AV control unit via AV communication.
12. Telematics switch Refer to "TELEMATICS SWITCH ".
13. Microphone Refer to "MICROPHONE ".
14. GPS antenna Refer to "GPS ANTENNA ".
15. Telematics antenna Refer to "TELEMATICS ANTENNA ".
16. TCU Refer to "TCU ".
