Telematics Antenna: Notes
WARNING:
This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.
The telematics antenna consists of TEL antenna and GPS antenna.
It is installed in the instrument panel.

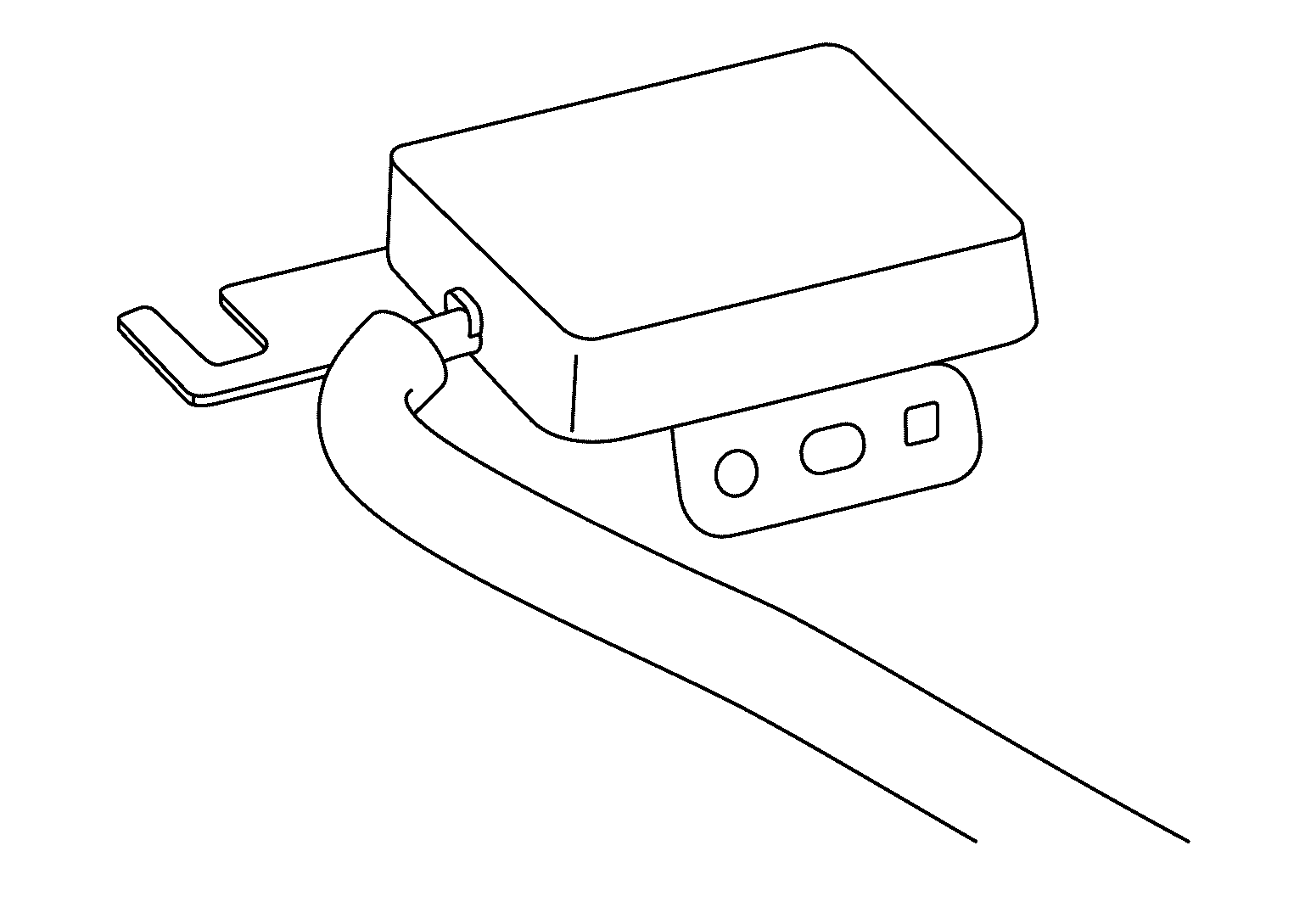

Fig 1: Identifying Telematics Antenna
Courtesy of NISSAN NORTH AMERICA, INC.
