Differential side shaft

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Drain the differential gear oil if necessary.
Remove the carrier cover bolts and separate the carrier cover from the gear carrier using Tool.
Tool number: KV10111100 (J-37228)

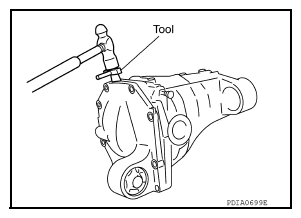

Fig 1: Separating Carrier Cover From Gear Carrier
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Do not damage the mating surface.
- Do not insert flat-bladed screwdriver, this will damage the mating surface.
Remove side oil seal.
CAUTION: Do not damage gear carrier.

Fig 2: Remove Side Oil Seal
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring (hole side) using suitable tool.

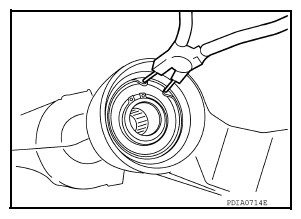

Fig 3: Removing Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove differential side shaft assembly out of gear carrier using suitable tool.
NOTE: Tap on differential side shaft assembly from side gear side.

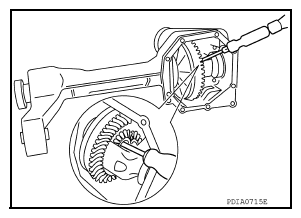

Fig 4: Removing Differential Side Shaft Assembly Out Of Gear Carrier
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring (differential side shaft side).
Press differential side shaft out of differential side shaft bearing.
CAUTION: Do not drop differential side shaft.

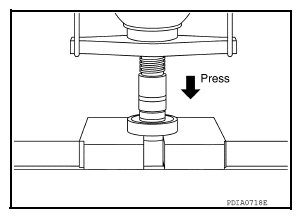

Fig 5: Pressing Differential Side Shaft Out Of Differential Side Shaft Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
