Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive shafts from the front final drive assembly. Refer to "UNIT REMOVAL AND INSTALLATION ".
  2. Remove the front crossmember.
  3. Remove the front propeller shaft from the front final drive assembly. Refer to "UNIT REMOVAL AND INSTALLATION ".
  4. Disconnect the vent hose from the front final drive assembly.
  5. Support the front final drive assembly using a suitable jack.
  6. Remove the front final drive assembly bolts, then remove the front final drive assembly.
    WARNING: Support the front final drive assembly while removing using a suitable jack.

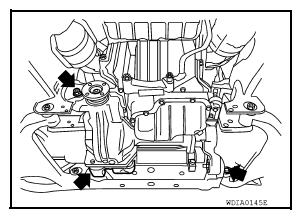

    Fig 1: Locating Front Final Drive Assembly Bolts
    G08711133Courtesy of NISSAN NORTH AMERICA, INC.
